SKU:
ALP 9064702
€ 4.520,19
1-2 weeks delivery time
-
+
The NHK MEC KE-6+ throttle control system designed for single engine setups with two steering stations delivers precise electronic throttle and shift control, supporting multi-station compatibility and modular expansions. It features the same electrical and environmental specifications as other KE-6+ systems and includes a comprehensive set of harnesses, control units, actuators, and cables to accommodate diverse installation needs. Optional components like CANbus harness, power harness, and alarms can be added.
- Description
- Ask a Question
-
NHK MEC KE-6+ Throttle Control System Single Engine/2 Steering Stations

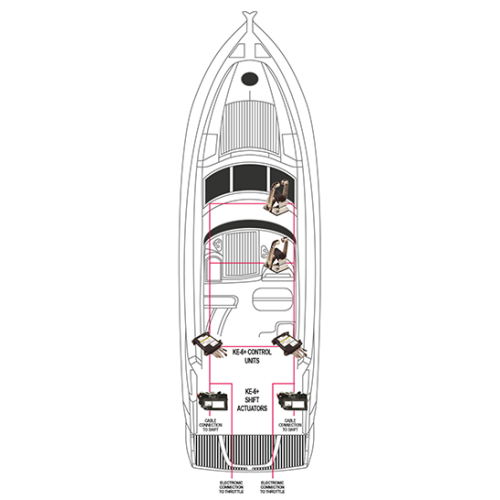

This NHK MEC KE-6+ configuration is engineered for single engine systems with two steering stations. It delivers precise electronic throttle and shift control, with multi-station compatibility and support for modular expansions based on installation needs.
- Supply Voltage: 9V ~ 32V DC
- Current Consumption: 0.5A Stand By or less
- Starting Current Actuator: 16A Max, 5A typical, 49N (5 kgf) belasting
- Shift Travel: 26-30-34-40mm
- Temperature Environment: -20°C / +77°C (-4°F / 170°F)
- Throttle Travel: Max. 80mm
- Throttle Output:
- Current: 3mA to 21mA
- Analog Voltage: 0.2V to 4.53V
- PWM: 6% to 94% Duty Cycle, 500Hz
- CAN: SAE J1939: 250kbits/s
- Article Number: 9064702
Included in this package:
- Seastar Control Cable 'Xtreme' CCX633 6' (1.83m) for Inboard-, Stern Drive- & Outboard Engines – Code: CCX63306
- NHK MEC KE-5+ Harness, Throttle 5m (NM0666-05) – Code: 9064973
- NHK MEC KE Power Harness 5m (NM0414-28) – Code: 9064830
- NHK MEC KE-6+/7+ Actuator Harness, 2m (NM0667-00) – Code: 9064975
- NHK MEC KE+ CANbus Harness 8m (NM0649-08) – Code: 9064778
- NHK MEC KE+ Dual Action Top Mount Control, Inboard Style (SST), Chrome (Lever on Left Side) (NM1003-00) – Code: 9064751
- NHK MEC CANbus T-Harness (Single Engine) (NM0647-11) – Code: 9064763
- NHK MEC Canbus T-Harness (R/C-1) (NM0647-09) – Code: 9064761
- NHK MEC KE-6+/7+ Shift / Throttle Actuator (NM0199-00) – Code: 9064749
- NHK MEC KE-6+/7+ Control Unit, 12V/24V (NM2447-00) – Code: 9064882
- NHK MEC KE+ CANbus T-Harness (R/C) (NM0647-10) – Code: 9064762
Optional or configurable components include: CANbus harness, power harness, push-pull cable, idle switch, idle switch extension harness, automatic fuse, and acoustic alarm.
-
