NHK MEC KE-6+ Throttle Control System Dual Engine/2 Steering Stations

SKU: ALP 9064704

€ 8.017,15

1-2 weeks delivery time

- +

Add to cart

The NHK MEC KE-6+ throttle control system for dual engine setups with two steering stations offers flexible and high-performance electronic throttle control through a network of compatible components, designed for demanding marine environments. It operates on a 9V to 32V DC supply, with low standby current consumption and supports multiple output signals including current, analog voltage, PWM, and CAN bus communication. The package includes various harnesses, control units, actuators, and cables for seamless integration.

Description
Ask a Question

NHK MEC KE-6+ Throttle Control System Dual Engine/2 Steering Stations

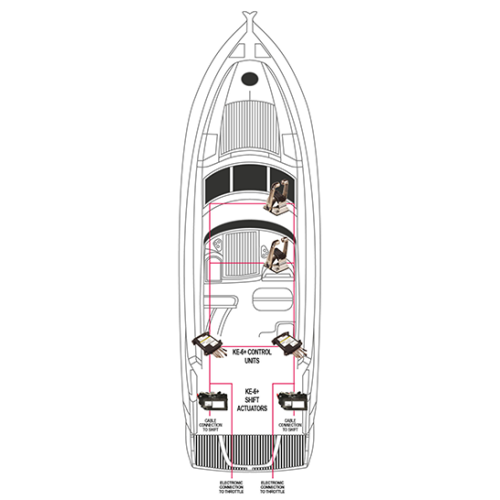

The NHK MEC KE-6+ electronic throttle control system is designed for dual engine configurations with two steering stations. Built for flexibility and high performance, this setup provides enhanced control using a network of compatible components, allowing seamless integration in demanding marine environments.
- Supply Voltage: 9V ~ 32V DC
- Current Consumption: 0.5A Stand By or less
- Starting Current Actuator: 16A Max, 5A typical, 49N (5 kgf) belasting
- Shift Travel: 26-30-34-40mm
- Temperature Environment: -20°C / +77°C (-4°F / 170°F)
- Throttle Travel: Max. 80mm
- Throttle Output:
  - Current: 3mA to 21mA
  - Analog Voltage: 0.2V to 4.53V
  - PWM: 6% to 94% Duty Cycle, 500Hz
  - CAN: SAE J1939: 250kbits/s
- Article Number: 9064704
Included in this package:
- NHK MEC Canbus T-Harness (R/C-1) (NM0647-09) – Code: 9064761
- NHK MEC KE-4+ Dual Action Twin Top Mount Control, Inboard Style (SST), Chrome (NM1053-00) – Code: 9064756
- NHK MEC KE+ CANbus T-Harness (R/C) (NM0647-10) – Code: 9064762
- NHK MEC KE-6+/7+ Shift / Throttle Actuator (NM0199-00) – Code: 9064749
- NHK MEC KE+ CANbus Harness 8m (NM0649-08) – Code: 9064778
- NHK MEC KE-5+ Harness, Throttle 5m (NM0666-05) – Code: 9064973
- Seastar Control Cable 'Xtreme' CCX633 6' (1.83m) for Inboard-, Stern Drive- & Outboard Engines – Code: CCX63306
- NHK MEC KE-6+/7+ Actuator Harness, 2m (NM0667-00) – Code: 9064975
- NHK MEC KE Power Harness 5m (NM0414-28) – Code: 9064830
- NHK MEC KE-6+/7+ Control Unit, 12V/24V (NM2447-00) – Code: 9064882
- NHK MEC KE-4+ Canbus T-Harness (Port) (NM0647-12) – Code: 9064764
- NHK MEC KE-4+ Canbus T-Harness (Starboard) (NM0647-13) – Code: 9064765
