SKU:
ALP 9064703
€ 6.772,25
1-2 weeks delivery time
-
+
The NHK MEC KE-6+ throttle control system is designed for dual engine configurations with a single steering station, offering precise electronic control, compatibility with various harnesses, and includes multiple components such as cables, harnesses, and actuators for marine applications.
- Description
- Ask a Question
-
NHK MEC KE-6+ Throttle Control System Dual Engine/1 Steering Station

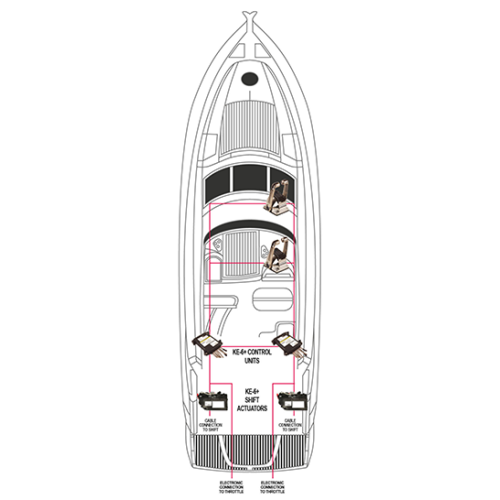

The NHK MEC KE-6+ is a fully integrated throttle control system tailored for dual engine configurations and a single steering station. This setup offers precise electronic control and is compatible with various harnesses and components, allowing customization to suit different installation needs.
- Supply Voltage: 9V ~ 32V DC
- Current Consumption: 0.5A Stand By or less
- Starting Current Actuator: 16A Max, 5A typical, 49N (5 kgf) belasting
- Shift Travel: 26-30-34-40mm
- Temperature Environment: -20°C / +77°C (-4°F / 170°F)
- Throttle Travel: Max. 80mm
- Throttle Output:
- Current: 3mA to 21mA
- Analog Voltage: 0.2V to 4.53V
- PWM: 6% to 94% Duty Cycle, 500Hz
- CAN: SAE J1939: 250kbits/s
- Article Number: 9064703
Included in this package:
- Seastar Control Cable 'Xtreme' CCX633 6' (1.83m) for Inboard-, Stern Drive- & Outboard Engines – Code: CCX63306
- NHK MEC Canbus T-Harness (R/C-1) (NM0647-09) – Code: 9064761
- NHK MEC KE-6+/7+ Control Unit, 12V/24V (NM2447-00) – Code: 9064882
- NHK MEC KE-5+ Harness, Throttle 5m (NM0666-05) – Code: 9064973
- NHK MEC KE Power Harness 5m (NM0414-28) – Code: 9064830
- NHK MEC KE-4+ Canbus T-Harness (Starboard) (NM0647-13) – Code: 9064765
- NHK MEC KE-4+ Dual Action Twin Top Mount Control, Inboard Style (SST), Chrome (NM1053-00) – Code: 9064756
- NHK MEC KE-6+/7+ Actuator Harness, 2m (NM0667-00) – Code: 9064975
- NHK MEC KE+ CANbus Harness 8m (NM0649-08) – Code: 9064778
- NHK MEC KE-6+/7+ Shift / Throttle Actuator (NM0199-00) – Code: 9064749
- NHK MEC KE-4+ Canbus T-Harness (Port) (NM0647-12) – Code: 9064764
Optional or configurable components include the CANbus harness, power harness, push-pull cable, idle switch, idle switch extension harness, automatic fuse, and acoustic alarm.
-
