€ 85,27
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Type:
- SmartShunt
- SmartShunt IP65
Current (Amps):
- 300
- 500
- 1000
- 2000
All-in-one battery monitor without display, available in 300A, 500A, 1000A, and 2000A versions. Bluetooth-enabled for use with the VictronConnect app. Offers precise battery monitoring (SOC, voltage, current, time-to-go) with optional GX device or sensor input. IP21 for standard models and IP65 waterproof for IP65 variants. Power range: 6.5–70VDC.
- Description
- Ask a Question
-

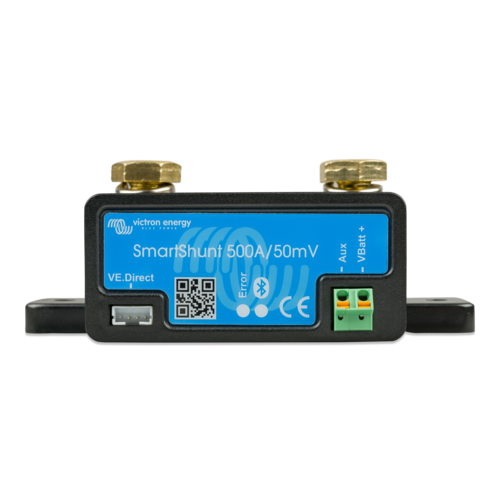

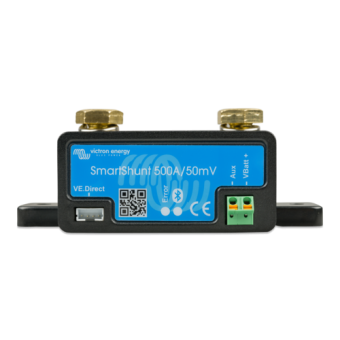

The Victron SmartShunt is an advanced all-in-one battery monitor that eliminates the need for a separate display—your smartphone acts as the interface via the VictronConnect app. With support for Bluetooth and VE.Direct, it offers seamless integration with GX devices as well.
This product line includes both standard and waterproof IP65 models, catering to various amperage needs from 300A to 2000A. Ideal for systems that require precise battery monitoring with minimal wiring and clutter.
Available Models and Part Numbers:
- Victron SmartShunt 300A – SHU050130050
- Victron SmartShunt 500A – SHU050150050
- Victron SmartShunt 1000A – SHU050210050
- Victron SmartShunt 2000A – SHU050220050
- Victron SmartShunt 300A IP65 – SHU065130050
- Victron SmartShunt 500A IP65 – SHU065150050
- Victron SmartShunt 1000A IP65 – SHU065210050
- Victron SmartShunt 2000A IP65 – SHU065220050
Main Features:
- All-in-one battery monitor with no physical display
- Bluetooth connectivity for mobile monitoring via VictronConnect app
- VE.Direct port for integration with GX devices
- Auxiliary input for second battery, midpoint monitoring or temperature sensor
- Waterproof IP65 models available
Technical Specifications:
Model Max Current Protection Dimensions (HxWxD) Shunt Bolt Size SmartShunt 300A 300 A IP21 44 x 120 x 44 mm M8 SmartShunt 500A 500 A IP21 46 x 120 x 54 mm M10 SmartShunt 1000A 1000 A IP21 68 x 168 x 75 mm M10 SmartShunt 2000A 2000 A IP21 68 x 168 x 100 mm M10 SmartShunt IP65 300A 300 A IP65 44 x 120 x 38 mm M8 SmartShunt IP65 500A 500 A IP65 46 x 120 x 54 mm M10 SmartShunt IP65 1000A 1000 A IP65 68 x 168 x 75 mm M10 SmartShunt IP65 2000A 2000 A IP65 68 x 168 x 100 mm M10
Performance & Accuracy:
- Voltage accuracy: ±0.3%
- Current accuracy: ±0.4%
- State of charge accuracy: ±0.1%
- Bluetooth range: 10–15 meters (may vary with interference)
Optional Accessories:
- Temperature Sensor – ASS000100000
- VE.Direct Bluetooth Dongle – ASS030536011 (for improving Bluetooth signal range)
Whether you choose the standard or IP65 version, Victron SmartShunt provides robust, flexible, and highly accurate battery monitoring for any marine or off-grid power system.
Documents
Victron SmartShunt IP65 Size: 473,8 KbVictron SmartShunt Size: 551,1 Kb -
