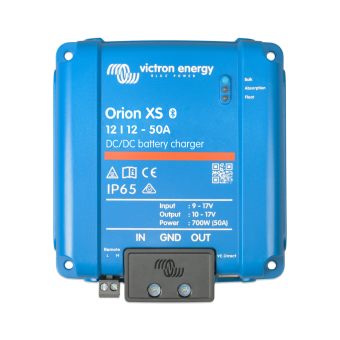

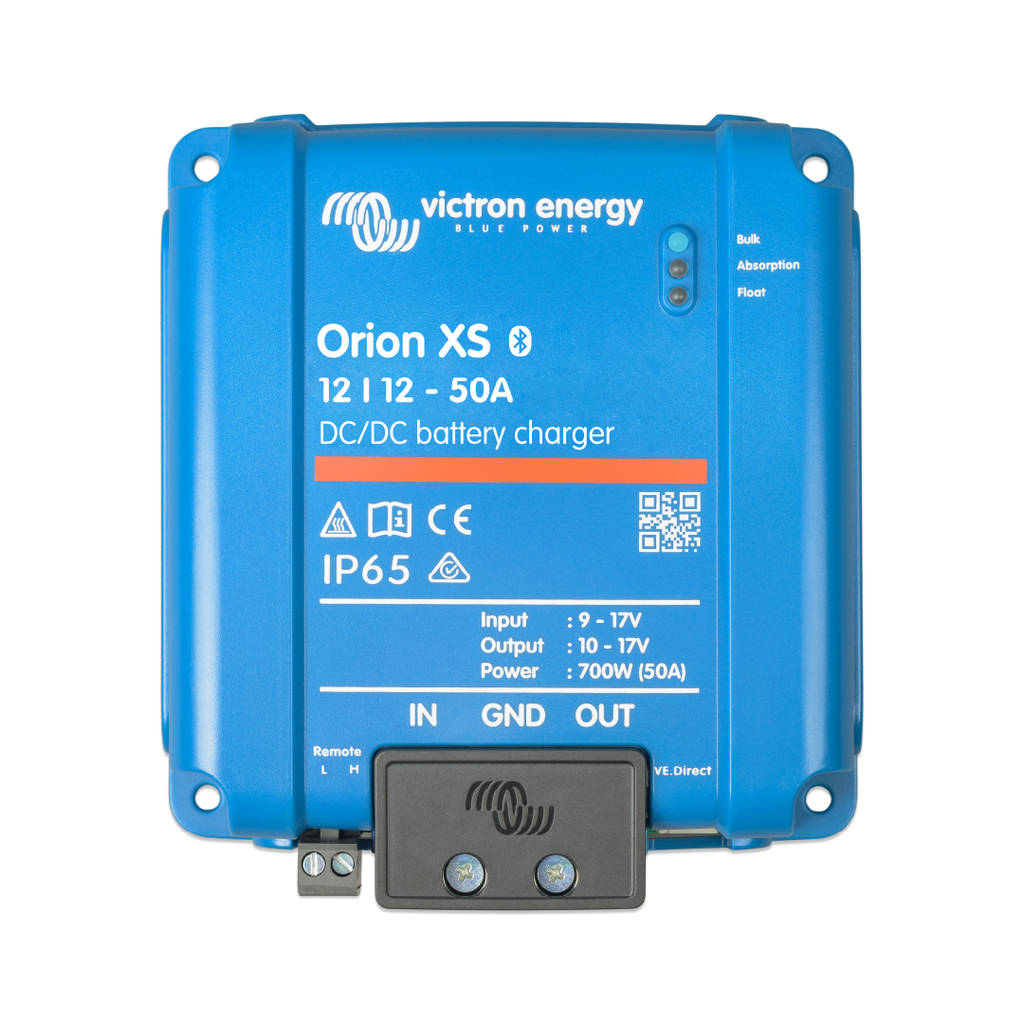

Victron Energy Orion XS DC-DC Battery-to-Battery Charger

€ 426,36

1-2 weeks delivery time
Price incl. 19% VAT

Type:

1400
12/12

The Victron Orion XS series redefines DC-DC battery-to-battery charging with smart alternator compatibility, IP65-rated enclosures, adaptive multi-stage charging, and full remote monitoring via Bluetooth and VE.Direct. These high-efficiency chargers (up to 98.5%) are ideal for dual-battery setups in marine, automotive, and off-grid applications. Models include the 12/12-50A and the powerful Orion XS 1400 for 12V and 24V systems.

Description
Ask a Question

Victron Energy Orion XS DC-DC Battery Chargers offer advanced and efficient battery-to-battery charging for modern 12V and 24V systems. Designed for intelligent alternators and dual-battery configurations, the Orion XS series ensures optimal battery management, even in demanding environments.

Available Models:

Orion XS 12/12-50A – For 12V to 12V systems, up to 50A (700W)
Orion XS 1400 – For 12V, 24V, or mixed systems, up to 50A (1400W)

Main Features:

High Efficiency: Up to 98.5% power conversion
Smart Alternator Compatible: Ideal for Euro 5/6 engines
Adaptive 4-Stage Charging: With 8 pre-programmed battery profiles
Programmable Output Current: Adjustable 1–50A (0.1A precision)
Input/Output Voltage: Wide range for flexibility across systems
IP65 Protection: Dust-tight and waterproof design
Remote Monitoring: Bluetooth Smart, VE.Direct, and VE.Smart Networking
Safety Features: Includes overload, short circuit, over-temperature, and low-temp shutoff

Technical Specifications Comparison:

Specification	Orion XS 12/12-50A	Orion XS 1400
Input Voltage Range	9 – 17 V	9 – 35 V
Output Voltage Range	10 – 17 V	10 – 35 V
Adjustable Output Current	1 – 50 A	1 – 50 A
Maximum Power	700 W	1400 W
Efficiency	Up to 98.5%	Up to 98.5%
Standby Current	< 1.5 mA	< 1.5 mA
Dimensions (HxWxD)	137.3 x 123.1 x 40 mm	138.1 x 124.4 x 53 mm
Weight	0.33 kg	0.52 kg
Communication	Bluetooth, VE.Direct, VE.Smart Networking	Bluetooth, VE.Direct, VE.Smart Networking
Parallel Operation	Yes	Yes
Protection Rating	IP65	IP65

System Integration:

VictronConnect App: Full setup and monitoring via Bluetooth
VE.Direct: For GX device integration (e.g. Cerbo GX)
VE.Smart Networking: Wirelessly sync with BMV, SmartShunt, or Smart Battery Sense
DVCC Ready: Dynamic voltage and current control via GX devices

With intelligent charge control, versatile voltage compatibility, and rugged IP65 housing, the Victron Orion XS series is the ideal DC-DC charging solution for professional energy systems in boats, RVs, and off-grid vehicles.

Documents

Victron Energy Orion XS DC DC Battery Charger Size: 489,5 Kb
