€ 1.589,87
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Voltage:
- 24V
- 48V
Electric power, W:
- 3000
Current (Amps):
- 35
- 70

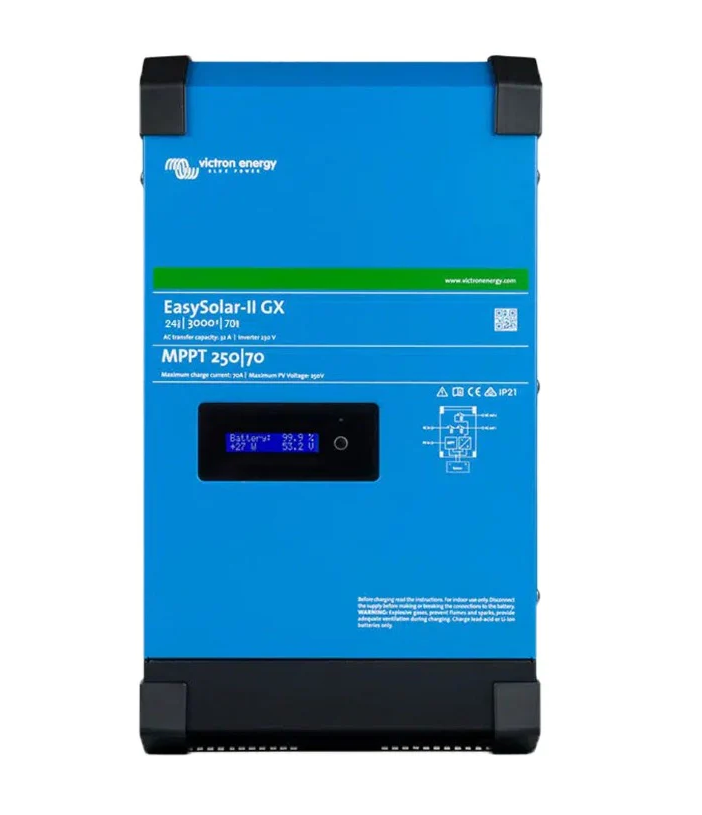

The Victron EasySolar-II GX series integrates a powerful MultiPlus-II inverter/charger, a SmartSolar MPPT controller (250/70 or 250/100), and a GX monitoring system in a single enclosure. With simplified installation, advanced connectivity (Wi-Fi, VE.Bus, VE.Direct, Ethernet), and high PV input capacity (up to 5800 W), these units are ideal for grid-tied, off-grid, and backup energy systems.
- Description
- Ask a Question
-
Victron Energy EasySolar-II GX is an all-in-one solar energy system that combines a MultiPlus-II inverter/charger, a SmartSolar MPPT charge controller, and a GX device into one compact and powerful enclosure. This combination simplifies installation, wiring, and system integration — making it ideal for off-grid, hybrid, and backup power systems.
Available Models:
- PMP242307010 – 24/3000/70-32 with MPPT 250/70 GX
- PMP482307010 – 48/3000/35-32 with MPPT 250/70 GX
- PMP482507010 – 48/5000/70-50 with MPPT 250/100 GX
Integrated Components:
- MultiPlus-II inverter/charger – Pure sine wave inverter with adaptive charger and fast transfer switch
- SmartSolar MPPT controller – High-voltage PV input with ultra-high tracking efficiency
- GX device – Provides system monitoring and control via built-in display, Wi-Fi, Ethernet, and mobile apps
Monitoring & Communication:
- Built-in 2-line LCD screen
- Wi-Fi access for setup and live monitoring
- GX device interfaces: VE.Bus, VE.Direct, BMS-Can, USB, Ethernet
- Compatible with VRM Portal and VictronConnect app
Technical Specifications:
Model 24/3000/70-32
48/3000/35-32
48/5000/70-50Inverter Output (25 °C) 3000 VA / 2400 W
3000 VA / 2400 W
5000 VA / 4000 WPeak Power 5500 W
5500 W
9000 WTransfer Switch 32 A
32 A
50 ABattery Charging Current 70 A
35 A
70 AMPPT Solar Controller MPPT 250/70-Tr
MPPT 250/70-Tr
MPPT 250/100-TrMax PV Power 2000 W
4000 W
5800 WMax PV Voltage 250 V (open circuit) Efficiency 94%
95%
96%Zero Load Power 13 W
11 W
18 WOperating Temperature -20°C to +45°C (fan-assisted) Protection Rating IP21 (indoor use) Dimensions (H × W × D) 499 × 268 × 237 mm
499 × 268 × 237 mm
604 × 323 × 253 mmWeight 26 kg
26 kg
38.6 kg
Typical Applications:
- Hybrid solar and battery storage systems
- Off-grid homes, cabins, or workshops
- Marine and mobile power setups
- Energy backup systems for grid failure
Additional Features:
- PowerAssist and PowerControl technologies
- Programmable relay (230 V / 4 A)
- Remote on/off support
- Battery temperature sensor included
- Compatible with CAN-bus managed lithium batteries
Manufacturer: Victron Energy, The Netherlands
