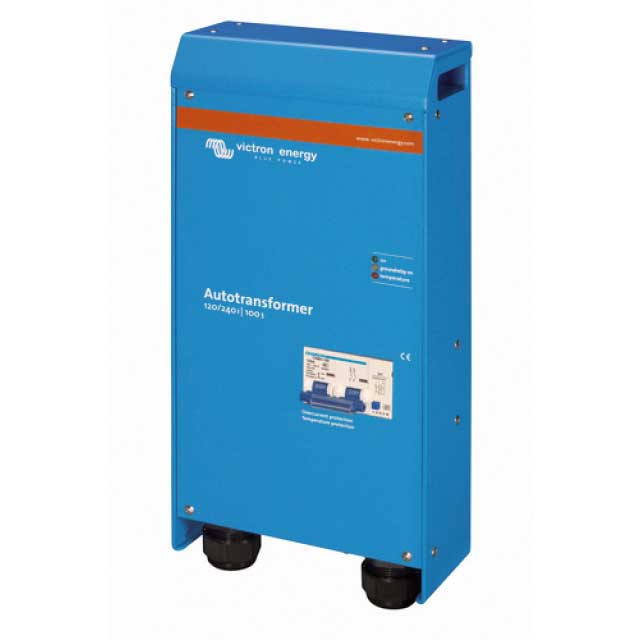

Victron Energy Autotransformers provide essential functionality in advanced AC power systems by enabling step-up, step-down conversion and split-phase output balancing in 120/240VAC installations. These transformers are especially useful in mobile, off-grid, and marine energy systems where load balancing across split-phase power is critical for optimal performance.
Key Applications:
- Step-up: 120V input to 240V output
- Step-down: 240V input to 120V output
- Split-phase balancing: Distribute unbalanced 120V loads over both legs of a 240V supply
Core Features:
- Toroidal transformer for efficient, silent operation
- Built-in ground relay for proper GFCI operation and system safety
- Thermal protection: disconnects on overheat; manual reset required
- IP21 aluminum enclosure – durable and compact for onboard or mobile applications
- Ideal alternative to stacking inverters for 120/240V supply needs
Example Use Case – Split Phase Balancing:
In a 120/240V split-phase system, unbalanced 120V loads on each leg can limit total usable power. A 30A supply may only deliver 4.8kVA (67%) due to current imbalance. The autotransformer resolves this by creating a new neutral, balancing the load across both legs. This enables use of the full 7.2kVA potential while protecting the power source.
Technical Specifications:
Model ITR000100001 ITR000100101 Rated Power 32A 100A Input/Output Voltage 120 / 240 VAC Frequency 50 / 60 Hz Neutral Current (30 min) 32A (3800 VA) — Neutral Current (continuous) 28A @ 40°C — Transformer Type Toroidal Protection Thermal shutdown, manual reset Grounding Relay Included (for inverter/charger compatibility) Enclosure Material Aluminum, blue anodized Protection Class IP21 Dimensions (H×W×D) 425 × 214 × 110 mm Weight 12.5 kg 13.5 kg Standards EN 60076
Autotransformer Use Scenarios:
- Generator Balancing: Efficient use of available output power from split-phase generators
- Inverter Systems: Eliminates need for stacked inverters by converting 240V to split-phase
- Off-Grid Homes or Marine Installations: Balances 120V loads to prevent breaker trips
Warranty: 5 years
Brand: Victron EnergyDocuments
Victron Energy Autotransformer 32A and 100A Size: 416,2 Kb -
