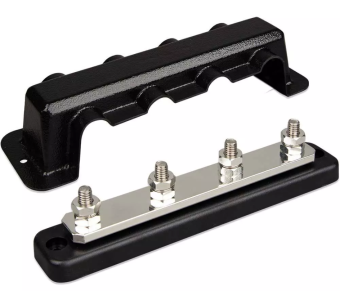

The Busbar 250A 4P is a high-current busbar rated for 250A, constructed with tin-plated copper for optimal conductivity, featuring a protective ABS cover for safety and easy connections with four terminals, designed for efficient power distribution in various applications.

Description
Ask a Question

Busbar 250A 4P

High-current busbar rated for up to 250A, designed for efficient power distribution in various applications.
- Max voltage rating of 70 VDC, suitable for a wide range of electrical systems.
- Constructed with high-quality tin-plated copper for optimal conductivity and durability.
- Includes four terminals with a diameter of 5/16 inch (8 mm) for easy connections.
- Features a protective cover made of ABS material for enhanced safety and prevention of accidental contact.
- Recommended torque of 110 lbf·inch (13 N·m) for secure terminal connections.
- Compact design with dimensions of 1.9 x 9.4 x 2.8 inches (48 x 237 x 70 mm) for versatile mounting options.
- Lightweight construction, weighing only 1.0 lb (0.45 kg) for easy installation.
Specifications:
- Max Current Rating: 250A
- Max Voltage Rating: 70 VDC
- Terminal Diameter: 5/16 inch (8 mm)
- Terminal Height: 0.67 inch (17 mm)
- Terminal Material: Stainless steel
- Hex Nut Material: Tin-plated copper
- Recommended Torque: 110 lbf·inch (13 N·m)
- Busbar Strip Material: Tin-plated copper (5 x 24 mm)
- Base Material: ABS, black, UL 94 V-0
- Cover Material: ABS, black, UL 94 V-2
- Weight (4 terminals): 1.0 lb (0.45 kg)
- Dimensions (with cover): 1.9 x 9.4 x 2.8 inches (48 x 237 x 70 mm)
Brand: Victron Energy

Product Number: VBB125040010
