The Phoenix Smart IP43 Charger 12/30(3) 120/240V is a versatile charging solution with three outputs for simultaneous battery charging, Bluetooth-enabled for monitoring, and an advanced 6-stage charging algorithm, all housed in an IP43-rated aluminum casing for durability.
- Description
- Ask a Question
-

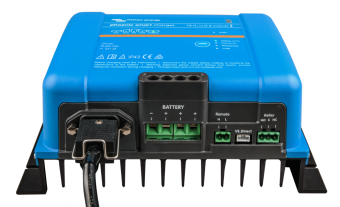

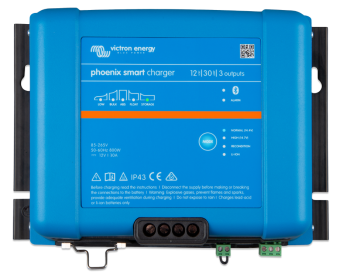

Phoenix Smart IP43 Charger 12/30(3) 120/240V
The Phoenix Smart IP43 Charger is a versatile and advanced charging solution designed for efficiency and durability.
- Advanced 12V 30A charger with three outputs for charging up to three battery banks simultaneously.
- Bluetooth-enabled for monitoring and configuration via the VictronConnect app on smartphones and tablets.
- Adaptive 6-stage charging algorithm including bulk, absorption, recondition, float, storage, and refresh stages.
- IP43-rated aluminum casing protects electronic components from sprayed water, suitable for challenging environments.
- Programmable relay for automation and control of external devices when connected to AC power.
Specifications:
- Input Voltage: 120-240V AC, with a wide input range of 85-265V and frequency of 45-65 Hz.
- Nominal Output Voltage: 12V with 30A charge current, and low current mode reducing output to 15A.
- Charge Voltages: Absorption - 14.4V (Normal), 14.7V (High), 14.2V (Li-ion); Float - 13.8V (Normal), 13.5V (Li-ion).
- Storage Mode Voltage: 13.2V (Normal), preventing gassing and corrosion during inactive periods.
- Battery Connections: Three full-current outputs with 16 mm² screw terminals for secure connections.
- Operating Temperature: -20°C to +60°C, with derating above 40°C to prevent overheating.
- AC Connection: IEC 320 C14 inlet with retainer clip, compatible with various country-specific plugs.
- Protection Rating: IP43 (electronics) and IP22 (connection area).
- Dimensions: 180 x 249 x 116 mm (7.1 x 9.8 x 4.6 inches).
- Weight: 2.7 kg (6 lbs).
Brand: Victron Energy
Product Number: PSC123053095
-
