SKU:
VDM VCTORI241205260
€ 28,34
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Orion IP67 24/12 5A DC-DC Converter provides exceptional performance in challenging environments, supporting an input voltage range of 15-40V DC and delivering a maximum continuous output current of 5A, with a high efficiency of 93% and compact dimensions for versatile installation.
- Description
- Ask a Question
-

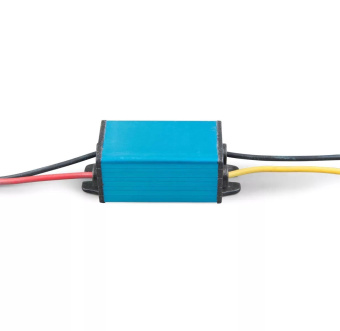

Orion IP67 24/12 5A DC-DC Converter
The Orion IP67 24/12 5A DC-DC Converter offers exceptional performance in a compact design, suitable for a variety of demanding environments.
- Input Voltage Range: 15-40VDC
- Output Voltage: 12V +/- 3%
- Maximum Continuous Output Current: 5A
- Efficiency: 93%
- Ripple & Noise: 75mV pp
- Operating Temperature Range: -20 to +70°C
- Overload Protection: Hiccup mode
- Short Circuit Protection: Yes
- Protection Against Reverse Polarity: With external fuse or circuit breaker
- Dimensions: 25 x 43 x 20 mm
- Weight: 50 g
- Input Cable Cross Section: 0.8mm² (18 AWG)
- Output Cable Cross Section: 0.8mm² (18 AWG)
- Standards: EN 60950, EN 61000-6-3, EN 55014-1, ECE R10-4
- Vibration Resistance: IEC 68-2-6: 10-150 Hz / 1.0 G
- Brand: Victron Energy
- Product Number: ORI241205260
-
