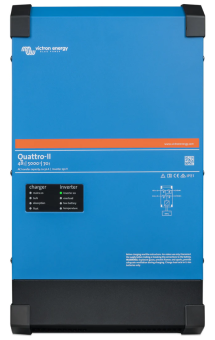

Victron Energy QUA482504010 MultiPlus Quattro-II 48/5000/70-50/50 230V

MultiPlus Quattro-II 48/5000/70-50/50 230V

Innovative inverter and charger designed for off-grid, marine, and industrial use.

• Advanced inverter and charger combined in one unit, providing reliable 48V power for various applications.
• Continuous output power of 5000VA (4000W) with peak power capability of 9000W, ideal for demanding loads.
• Two AC inputs and two AC outputs, allowing automatic switching between multiple power sources such as grid and generator.
• PowerAssist technology prevents overload by reducing battery charging when needed and boosting generator or shore power output.
• Fast transfer switch (50A) ensures uninterrupted power supply during grid failures, activating in less than 20 milliseconds.
• Bluetooth connectivity for easy monitoring and configuration via the VictronConnect app, enhancing user experience.

Specifications:

• Input Voltage Range: 38-66V DC
• Output Voltage: 230V AC ±2%
• Frequency: 50 Hz ±0.1% (configurable to 60 Hz)
• Continuous Output Power at 25°C: 5000VA (4000W)
• Continuous Output Power at 40°C: 3700W
• Peak Power: 9000W
• Efficiency: Up to 96%
• Battery Charging Current: 70A
• Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
• Dimensions: 560 x 328 x 148 mm
• Weight: 30 kg
• Protection Category: IP22
• Certifications: EN 60335-1, EN 55014-1, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3

Brand: Victron Energy

Product Number: QUA482504010

The MultiPlus Quattro-II 48/5000/70-50/50 230V by Victron Energy is a powerful all-in-one inverter and charger solution, designed to handle off-grid, marine, and industrial power needs with high efficiency and smart power control. With 5000VA output, dual AC inputs/outputs, and PowerAssist functionality, it ensures uninterrupted energy flow and peak performance. For alternative models and modular configurations, explore our full range of Victron Multiplus solutions.

For more advanced and flexible power solutions, explore our full range of Victron Quattro​ inverter/chargers.
