Victron Energy PIN122201000 Phoenix Inverter 12/2000 230V Smart

SKU: VDM VCT122201000

€ 843,06

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Phoenix Inverter 12/2000 230V Smart delivers reliable energy with a continuous output of 2000VA, featuring Bluetooth for easy monitoring, a wide input voltage range, and dynamic cut-off functionality for energy efficiency.

Description
Ask a Question

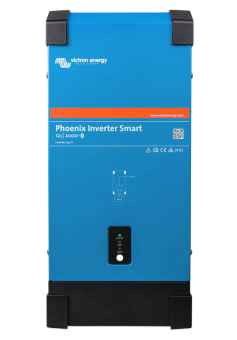

Phoenix Inverter 12/2000 230V Smart

This powerful inverter provides reliable energy for various appliances.
- High-performance 12V inverter with a continuous output of 2000VA, ideal for powering a range of appliances
- Built-in Bluetooth for easy monitoring and configuration via the VictronConnect app on smartphones and tablets
- Wide input voltage range of 9.3 - 17V, ensuring compatibility with various battery systems
- Selectable output voltage (210 - 245V) and frequency (50Hz or 60Hz) for diverse applications
- Dynamic cut-off functionality that adjusts based on load, enhancing energy efficiency
- Integrated ECO mode to minimize power consumption when the load is low
Specifications:
- Model: PIN122201000
- Nominal Input Voltage: 12V DC
- Input Voltage Range: 9.3 - 17V DC
- Continuous Output Power at 25°C: 2000VA (1600W)
- Peak Output Power: 4000W
- Efficiency: Up to 93% depending on load conditions
- Continuous Output Power at 40°C: 1800W
- Continuous Output Power at 65°C: 1200W
- Output Voltage: 230V AC ±2%
- Output Frequency: 50Hz or 60Hz (selectable)
- Protection: Short circuit, overload, battery voltage too low, battery voltage too high, temperature too high
- Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
- Dimensions (HxWxD): 485 x 219 x 125 mm
- Weight: 12 kg
- Communication Ports: VE.Direct and Bluetooth
Brand: Victron Energy. Product Number: PIN122201000
