Victron Energy SHU065150050 SmartShunt 500A/50mV IP65

SKU: VDM VCT065150050

€ 132,21

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The SmartShunt 500A/50mV IP65 model features robust specifications for demanding environments, offering reliable battery monitoring with IP65 protection, ensuring durability in various applications.

Description
Ask a Question

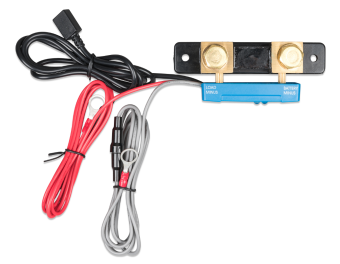

SmartShunt 500A/50mV IP65

This model features enhanced specifications for robust environments, ensuring reliable battery monitoring.
- Maximum Current: 500A
- Shunt Resistance: 50 mV at 500A
- Supply Voltage Range: 6.5 - 70 VDC
- Current Draw: Less than 1 mA
- Input Voltage Range: 6.5 - 70 VDC
- Battery Capacity Range: 1 - 9999 Ah
- Operating Temperature Range: -40 to +50 °C (-40 to 120 °F)
- Temperature Measurement Range: -20 to +50 °C (with optional sensor)
- Measurement Accuracy:
  - Current Measurement Accuracy: ±0.4%
  - Voltage Measurement Accuracy: ±0.3%
  - Amp Hours Resolution: ±0.1 Ah
  - State of Charge Resolution: ±0.1%
  - Time to Go Resolution: ±1 minute
  - Temperature Accuracy (optional sensor): ±1 °C/°F
- Data Storage: Stores up to 46 days of battery data
- Connectivity:
  - Bluetooth Range: 10-15 meters
  - VE.Direct port for GX device connection
- Protection Category: IP65
- Dimensions: 46 x 120 x 54 mm
- Shunt Connection Bolts: M10
- Compliance Standards:
  - Safety: EN 60335-1
  - Emission/Immunity: EN-IEC 61000-6 series
  - Automotive: EN 50498
- Compatibility and Application:
  - Perfect for marine, RV, and off-grid applications
  - Compatible with Victron GX devices
- Brand: Victron Energy
- Product Number: SHU065150050
