The ChargeMaster Plus Battery Charger 24/110-2 offers advanced features and a high power output of 110 A, with dimensions of 384 x 250 x 127 mm, supporting battery bank sizes of 400-1000 Ah and designed for 120/230 V input, featuring comprehensive protections and IP23 rating.
- Description
- Ask a Question
-

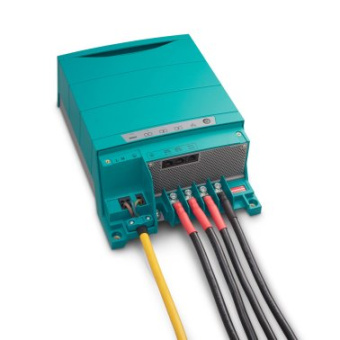

ChargeMaster Plus Battery Charger 24/110-2
The ChargeMaster Plus 24/110-2 model offers advanced features and high power output for demanding battery charging applications.
- Nominal Output Voltage: 24 V
- Secondary Output Voltage: 14.25 / 28.5 V (12/24 V)
- Max Output Current (Primary): 110 A
- Max Output Current (Secondary): 5-15 A at 12 V / 5-20 A at 24 V (adjustable)
- Total Charge Current: 110 A at 28.8 V
- Max AC Current: 15.75 A / 31.5 A (230 V / 120 V)
- Battery Outlets: 2 (max)
- Battery Bank Size: 400-1000 Ah
- Nominal Input Voltage: 120/230 V (80-275 V), 50/60 Hz
- AC Connection: Screw terminals (suitable up to 6 mm²)
- Power Supply Mode: Yes
- Galvanic Isolation: Yes
- Display: LED
- Dimensions: 384 x 250 x 127 mm (15.1 x 9.8 x 5.0 inches)
- Weight: 6.3 kg (13.9 lb)
- Compliance: CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RRR
- Charge Characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
- Temperature Compensation: -60 mV/°C / -76 mV/°F; includes temperature sensor
- DC Voltage Compensation: Automatic or through MasterShunt
- Power Consumption (DC Side): < 2 mA (MasterBus off)
- Current Control Function: Yes, through MasterBus or CZone
- Power Factor Control: Yes, > 0.98
- Temperature Range: -25 °C to 80 °C, derating > 40
- Cooling: Vario fan
- Protection Degree: IP23, vertical mounting
- Protections: Over-temperature, overload, short circuit, high/low battery voltage, ignition protection
- Charger Status Interface: Yes, using a Multipurpose Contact Output (code 77030500)
