The Smart Battery Hub (SBH) from BEP is the world's first intelligent battery management system designed for boats with two or more outboard motors. It features NMEA2000/IPX7 compatibility, remote-activated switches, and bidirectional voltage-sensitive switching (VSS), along with emergency parallel functionality and ignition protection against gas ignition. With robust IPX7 housing for easy installation, it supports configurations for two or three motors and includes manual safety controls, battery voltage monitoring, and state of charge monitoring. Rated at 300A with a maximum capacity of 1450A, it operates at 12/24V and weighs 8.4 kg, making it an essential component for efficient battery management in marine applications.
- Description
- Ask a Question
-

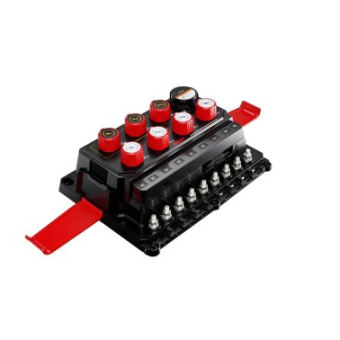

Smart Battery Hub for 2 Motors
The Smart Battery Hub (SBH) from BEP is the world's first intelligent battery management system designed for boats with two outboard motors or more.
- NMEA2000 / IPX7 battery management system
- Remote-activated switches
- Bidirectional voltage-sensitive switching (VSS)
- Emergency parallel functionality
- Robust IPX7 housing for easy installation
- Ignition protected against gas ignition
- NMEA2000 communication for multifunction display
- Configurations for two or three motors
- Remote-controlled magnetic locking switches
- Voltage-sensitive configurable switches
- Battery voltage monitoring
- Battery bank state of charge monitoring
- 2 additional sensor inputs
- Manual safety control for all battery switches
- Rated current: 300 A
- Consumption: 92 mA
- Height: 275 mm
- Protection rating: IPX7
- Rated capacity: 700 A
- Maximum capacity: 1450 A
- Width: 159 mm
- Length: 365 mm
- Model: For 2 motors
- Weight: 8.4 kg
- Voltage: 12/24 V
- Brand: BEP
VDM - Reya SKU: BEP80-716-0030-00
EAN CODE: 870216049670 -
