SKU:
VDM 884970
€ 24,71
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+

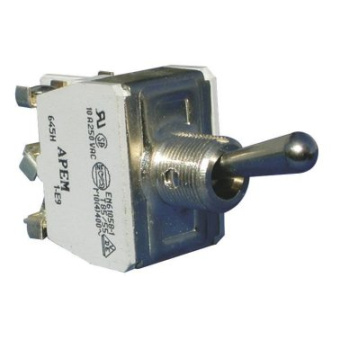

The 2P Switch - Mom-Off-Mom is an industrial switch designed for alternating and direct current, featuring a single, double, or triple lever configuration. It boasts a UL94-V0 polyester body, a nickel-plated brass actuator, and screw terminal outputs, while ensuring improved mechanical stability with contacts welded directly to the output support. With a cutting capacity of up to 15 A, it accommodates a maximum panel thickness of 4.5 mm and requires a drilling size of 12 mm. Certified by UL, CSA, and NF-VDE, it operates at 5A @ 25V and 12A @ 250V, with a maximum current of 10, in a bipolar model with two poles and MOM/OFF/MOM positions.
- Description
- Ask a Question
-
2P Switch - Mon-Off-Mon
This industrial switch features a single, double, or triple lever design suitable for both alternating and direct current.
- Body made of UL94-V0 polyester
- Nickel-plated brass actuator
- Screw terminal outputs
- Contacts directly welded to output/contact support for improved mechanical stability
- Cutting capacity up to 15 A
- Maximum panel thickness: 4.5 mm
- Drilling size: 12 mm
- Certified: UL, CSA, and NF-VDE
- Current: 5A @ 25V - 12A @ 250V
- Maximum current: 10
- Model: Bipolar
- Number of poles: 2
- Number of positions: MOM/OFF/MOM
VDM - Reya SKU: 884970 -
