Bipolar Battery Switch 48VDC/250A

Bipolar Battery Switch 48VDC/250A 443809

Introducing the Cormar Bipolar battery switch, a solution designed for switching high current loads across various vehicles. Whether it's for boats, cars, or commercial and industrial vehicles, our high-performance switch is suitable for all applications. With a maximum voltage of 48 VDC and a current rating of 250A, our Bipolar battery switch guarantees reliability and durability.

• Specifications:
• Nominal Voltage: Maximum 48 VDC
• Continuous Current: 250A / 5 seconds: 2500A
• Configuration: Normally Open (N/O)
• Protection Class (IP): IP66
• Operating Temperature Range: -40°C to +85°C
• Weight: 1 Kilogram
• Connections: M10 Tinned Copper
• Tightening Torque: 15 ± 1.0 Nm
• Contacts: Copper
• Hardware: Steel Nuts and Washers
• Construction: Reinforced Plastic Housing with Sunken Steel Frame and Handle
• Salt Spray: Body & studs resistant to ISO9227: 72 hours
• Washers & Nuts resistant to ISO9227: 120 hours
• Operating Temperature: -40°C to +85°C

• General:
• Designed for switching high current loads for various applications including boats, cars, and commercial/institutional vehicles.
• This high-performance switch is made from high-quality materials and sealed to protect against aggressive environmental conditions.

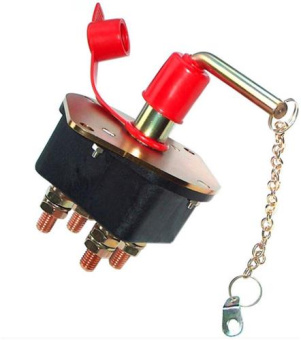

• Features a removable heavy-duty handle with a chain.
• Includes a weather-resistant key cover and seal for optimal functionality.

• Product Details:
• Sales Unit: 1 Piece
• Protection Class (IP): IP66

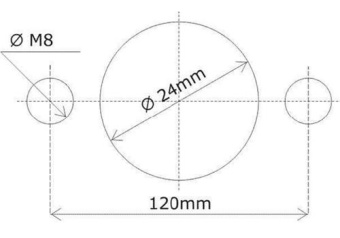

• Hole Size Ø (mm): 24
• EAN Code: 8720763547100
• Brand: White Label
• Input Voltage Type (VAC / VDC): VDC
• Input Voltage (V): 48
• Material: Steel
• Material: Plastic
• Type Voltage (VAC / VDC): VDC
• Current Amps (A): 250
• Continuous Current Amps (A): 250
• Short Duration Current Amps (A): 2500
• Voltage (V): 12
• Voltage (V): 48
• Voltage (V): 24
