€ 17,95
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Type:
- 32V
- 58V
- 80V
Current (Amps):
- 40
- 60
- 80
- 100
- 125
- 150
- 175
- 200
- 225
- 250
- 300
- 400
- 500
Item:
- pcs

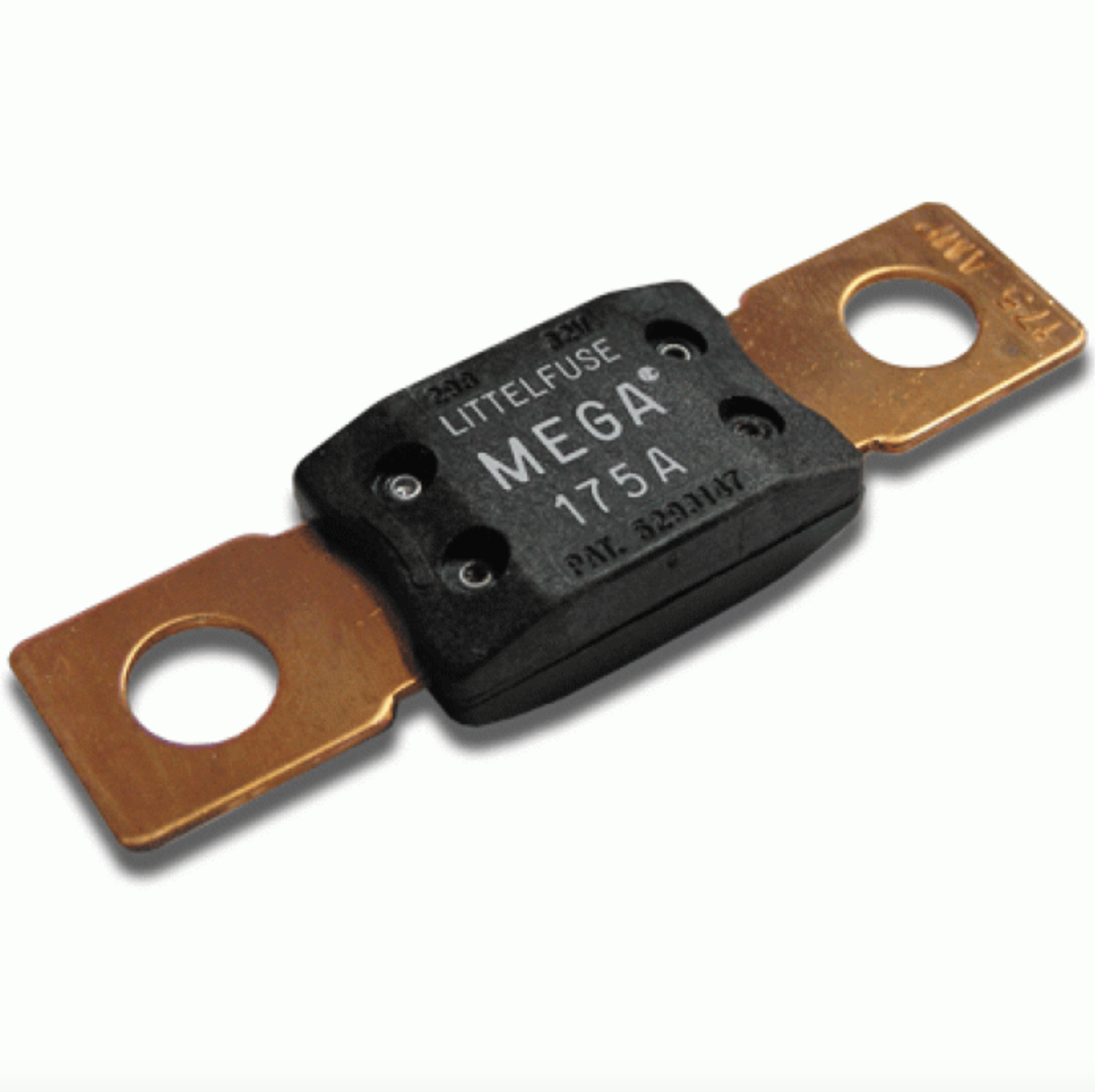

Victron MEGA-Fuses are high-current protection fuses rated for 32V, 58V, or 80V systems, designed for secure and efficient overcurrent protection. Supplied in packs of 5, with current ratings from 40A to 500A and extremely low internal resistance, they are ideal for use with inverters, batteries, and DC systems.
- Description
- Ask a Question
-
Victron MEGA-Fuses are robust high-current DC fuses designed to protect electrical systems in marine, off-grid, and automotive environments. These fuses are suitable for voltages of 32V, 58V (especially for 48V battery systems), and 80V, and come in packages of 5 pieces. Engineered for low voltage drop and excellent durability, they are the optimal solution for safeguarding high-amperage circuits.
Key Features:
- Available for 32V, 58V, and 80V DC applications
- Extremely low internal resistance for minimal power loss
- Wide current range: 40A to 500A
- Ideal for inverters, battery banks, solar setups, and heavy-duty DC equipment
- Sold in packs of 5 pieces
- Compatible with Victron MEGA fuse holders
Technical Specifications:
Model Voltage Current Rating Voltage Drop Cold Resistance CIP136225010 32V 225A 80 mV 0.22 mΩ CIP136250010 32V 250A 80 mV 0.20 mΩ CIP136300010 32V 300A 80 mV 0.17 mΩ CIP136400010 32V 400A 70 mV 0.13 mΩ CIP136500010 32V 500A 70 mV 0.10 mΩ CIP138040020 80V 40A 135 mV 1.459 mΩ CIP138060020 80V 60A 135 mV 1.017 mΩ CIP138080020 80V 80A 110 mV 0.716 mΩ CIP138100020 80V 100A 110 mV 0.868 mΩ CIP138125020 80V 125A 110 mV 0.653 mΩ CIP138150020 80V 150A 110 mV 0.332 mΩ CIP138175020 80V 175A 110 mV 0.282 mΩ CIP138225020 80V 225A 110 mV 0.235 mΩ CIP138300020 80V 300A 80 mV 0.171 mΩ CIP138400020 80V 400A 80 mV 0.128 mΩ CIP138500020 80V 500A 80 mV 0.106 mΩ CIP137125010 58V 125A 90 mV 0.4 mΩ CIP137200010 58V 200A 80 mV 0.25 mΩ CIP137250010 58V 250A 80 mV 0.2 mΩ
Documents
Victron Midi,-Mega-and-ANL-fuses Size: 160,8 Kb -
