SKU:
VDM BSS4378
€ 265,13
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The WeatherDeck® 12V DC Waterproof Circuit Breaker Panel - Gray 8 Positions is designed for marine applications, offering reliable protection and easy access to circuit controls. Rated IP67 for temporary immersion for up to 30 minutes, it is ideal for flybridge and open cockpit use. The panel features independent label backlighting for switching and dimming, is compatible with all Blue Sea Systems Digital Dimmers, and is available in 4 and 6 circuit models. Each panel can be mounted in four different orientations, with green LEDs for low-light readability. It supports a nominal voltage of 12V DC / 24V DC, provides circuit protection via circuit breakers, and has a maximum amperage of 15A at 12V DC and 9A at 24V DC per circuit, with a cumulative rating of 45A. Constructed from reinforced polycarbonate, it measures 7.70 in (195.58 mm) in height, 4.25 in (107.95 mm) in width, and 3.50 in (88.9 mm) in depth, weighing 1.83 lb (0.83 kg). This product is branded by Blue Sea.
- Description
- Ask a Question
-

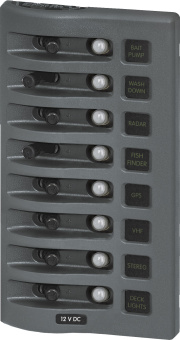

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel - Gray 8 Positions
This waterproof circuit breaker panel is specifically designed for marine applications, providing reliable protection and easy access to circuit controls.
- Rated IP67 for temporary immersion for up to 30 minutes.
- Designed for flybridge and open cockpit applications.
- Independent label backlighting allows for switching and dimming.
- Compatible with all Blue Sea Systems Digital Dimmers.
- Available in 4 and 6 circuit models.
- Each panel can be mounted in four different orientations.
- Green LEDs assist with low-light readability; all labels illuminate when the panel is powered.
- Positions: 8.
- Nominal Voltage: 12V DC / 24V DC.
- Circuit Protection: Circuit Breaker.
- Maximum Amperage: 15A @ 12V DC (per circuit), 9A @ 24V DC (per circuit).
- Panel Cumulative Rating: 45A.
- Backlighting Amperage: 10mA per illuminated circuit.
- Material: Reinforced Polycarbonate.
- Dimensions: Height 7.70 in (195.58 mm), Width 4.25 in (107.95 mm), Depth 3.50 in (88.9 mm).
- Weight: 1.83 lb (0.83 kg).
- Brand: Blue Sea.
VDM - Reya SKU: BSS4378
EAN CODE: 632085043780 -
