SKU:
TN 00304290
€ 4
1-2 weeks delivery time
-
+
The Push Button Switch with Rubber Cap is a compact and durable 12V plastic push button, suitable as a horn button, starter switch, or wiper control. It features screw connectors and can be mounted in a 22 mm drill hole with a maximum material thickness of 5 mm.
- Description
- Ask a Question
-

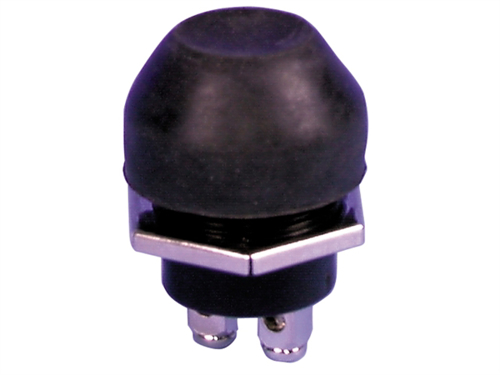

Push Button Switch with Rubber Cap
Compact and durable push button made of plastic, ideal for use as a horn button, starter switch, or wiper control. Comes in black and is available with or without a protective rubber cap.
- Voltage: 12 Volts
- Power consumption: 10 A
- Capacity: 5 A @ 12 V
- Connectors: 2x Screw connectors for cables up to 2.5 mm²
- Mounting: Drill hole mounting with 22 mm diameter
- Maximum material thickness for mounting: 5 mm
- Secured with sheet metal nut (SW 28)
- Dimensions with rubber cap:
- Height: 18 mm
- Diameter: 30 mm
- Mounting depth: 30 mm
- Order number: 00304290
- Supplier code: 460472
- Barcode: 7392642321074
- Brand: Roca Electrics
-
