SKU:
TN 00204103
€ 30,22
1-2 weeks delivery time
-
+
The Ripca MBS12-1 battery switch provides a reliable 200 amp continuous current rating with a removable key for added security. It includes durable brass M8 threaded bolts and a threaded housing with flat sides to prevent rotation, with easy installation by tightening a large nut on the back.
- Description
- Ask a Question
-

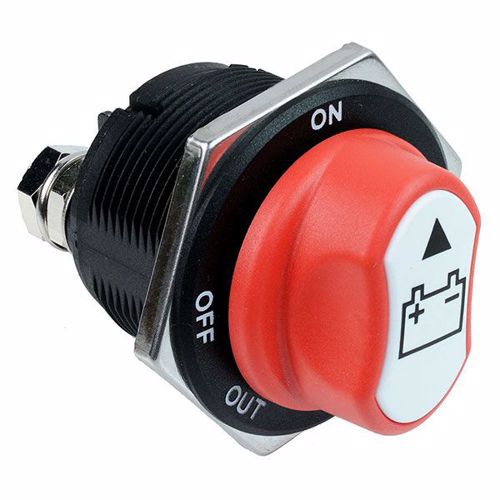

Ripca MBS12-1 - Battery Switch MBS12 200A Continuous DS
This compact battery switch offers a reliable 200 amp continuous main power connection with a removable key for added security. It features an easy installation process by tightening a large nut on the back, while the threaded housing with two flat sides prevents the switch from rotating during use. Durable brass bolts with M8 threading ensure a secure fit.
- Continuous current rating: 200 Amps DC
- Momentary current rating: 300 Amps DC
- Maximum current for 5 seconds: 1000 Amps
- Maximum voltage: 50 Volts DC
- Installation diameter: 38 mm
- Flange diameter: 45 mm
- Installation depth: 44 mm
- Product height: 19 mm
- Suitable for panel thickness up to 20 mm
- Order number: 00204103
- Supplier code: MBS12-1
- Barcode: 8712734123796
-
