The Ripca MBS10-1 battery switch is a compact circuit breaker rated for 50 amps continuous current. It features a threaded housing with flat sides to prevent rotation, secured by insulated screws, and is designed for easy installation in panels up to 9.5 mm thick.
- Description
- Ask a Question
-

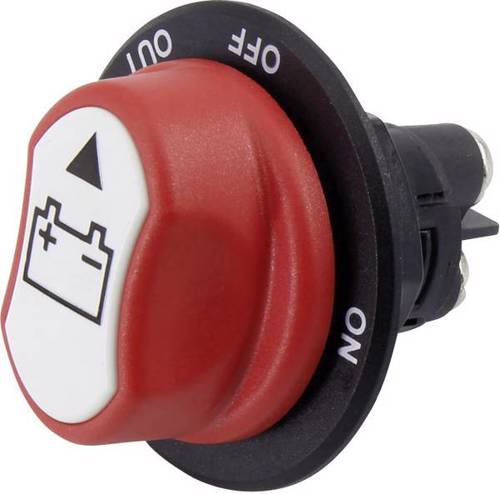

Ripca MBS10-1 - Battery Switch MBS10 50A Continuous DS
This compact main circuit breaker supports a continuous current of 50 amps and is designed for straightforward installation. Its housing has a threaded design with flat sides to prevent rotation, secured by insulated M4 screws for terminal safety.
- Order number: 00204101
- Supplier code: MBS10-1
- Barcode: 8712734123772
- Manufacturer: Ripca Elektra
- Installation diameter: 22 mm
- Flange diameter: 45 mm
- Installation depth: 32 mm
- Product height: 19 mm
- Maximum voltage: 50 Volts DC
- Continuous power: 50 A
- Short-term power: 75 A
- Maximum current (5 seconds): 300 A
- Panel thickness compatibility: up to 9.5 mm
-
