SKU:
CN NB00143501
€ 385,86
1-2 weeks delivery time
-
+
The Veratron VMH-35S is a versatile multifunction gauge designed for outboard engine monitoring. It features a sun-readable hybrid display and integrates with NMEA 2000 connectivity, providing accurate data and efficient functionality. The stylish black-glass design with a brushed stainless-steel ring, combined with advanced features like an intelligent battery sensor and integrated GNSS receiver, ensures reliable performance and modern aesthetics.
- Description
- Ask a Question
-

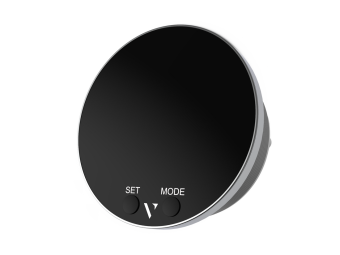

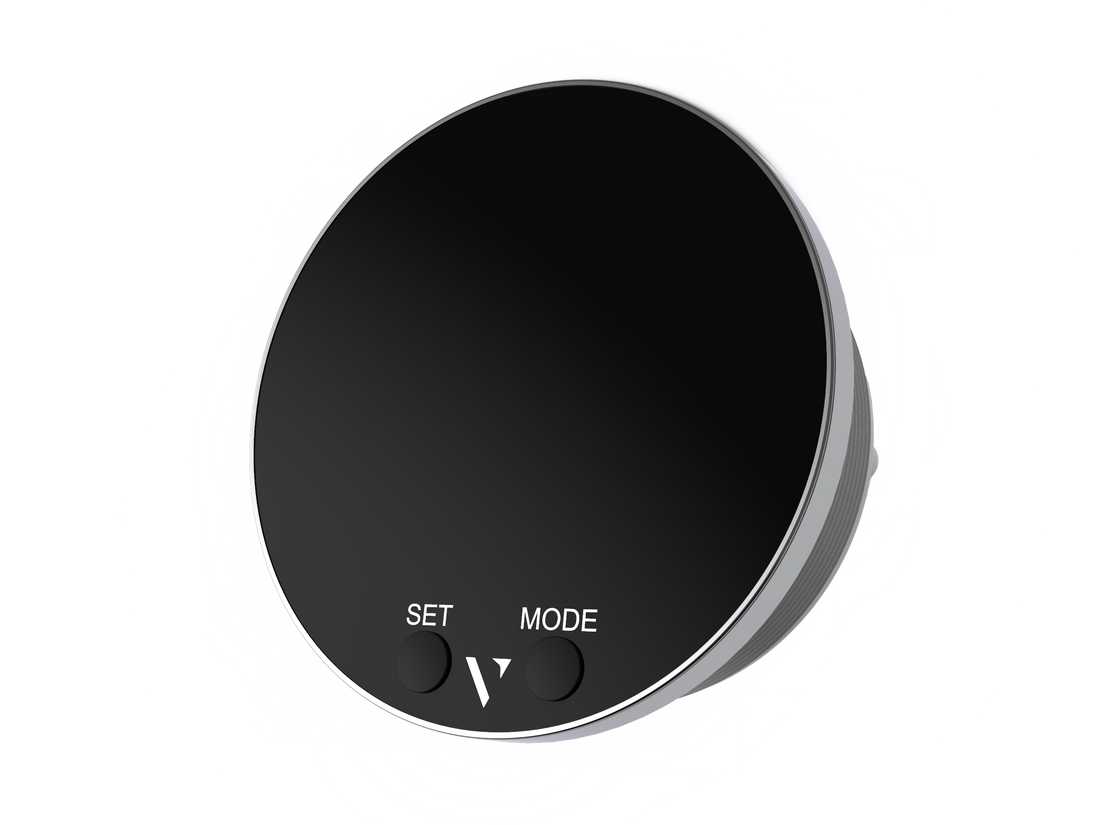

Veratron VMH-35S Multifunction Gauge 85mm (3-3/8")
The Veratron VMH-35S is a versatile and high-performance gauge designed for precise monitoring of outboard engines. Featuring a digital sun-readable display, it integrates seamlessly with analog inputs and NMEA 2000 connectivity, offering an all-in-one solution for your boat’s cockpit needs.
- Series: VMH
- Function: Multifunctional
- Nominal Voltage: 12V
- Bezel Color: Stainless steel
- Screen Dimension: 3.5"
- Connectivity: NMEA 2000, LIN, EasyLink
Highlights:
- Stylish black-glass design with brushed stainless-steel ring
- New generation sun-readable color hybrid display
- Intelligent Battery Sensor (IBS) port
- Analog to NMEA 2000® gateway
- Integrated high-performance GNSS receiver
- NMEA 2000® certified
Technical Specifications:
- Analog Inputs: 1x Resistive / 1x 0-5 V / 1x Frequency
- Nominal Voltage: 12 V
- Operating Voltage: 9 - 16 V
- Current Consumption: ≤ 150 mA (normal mode)
- Protection Class: IP X7
- Dimensions: 100 mm (outer), 85 mm (mounting hole)
- Front Ring: Brushed stainless steel
- Front Lens: Mineral glass
- Display: Color IBN + 1.44" TFT optically bonded
- Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
- NMEA 2000 Certified: Yes, with embedded analog gateway
-
