SKU:
CN NB00085501
$ 467,20
1-2 weeks delivery time
-
+
The Veratron VMH 35 is a 3.5-inch multifunction display offering detailed data from your boat’s systems. It has a sun-readable colour hybrid display, durable mineral glass lens, and brushed stainless-steel ring. The display is customizable, supports up to four engines, and integrates with various marine electronics via NMEA 2000, J1939, or analog inputs.
- Description
- Ask a Question
-

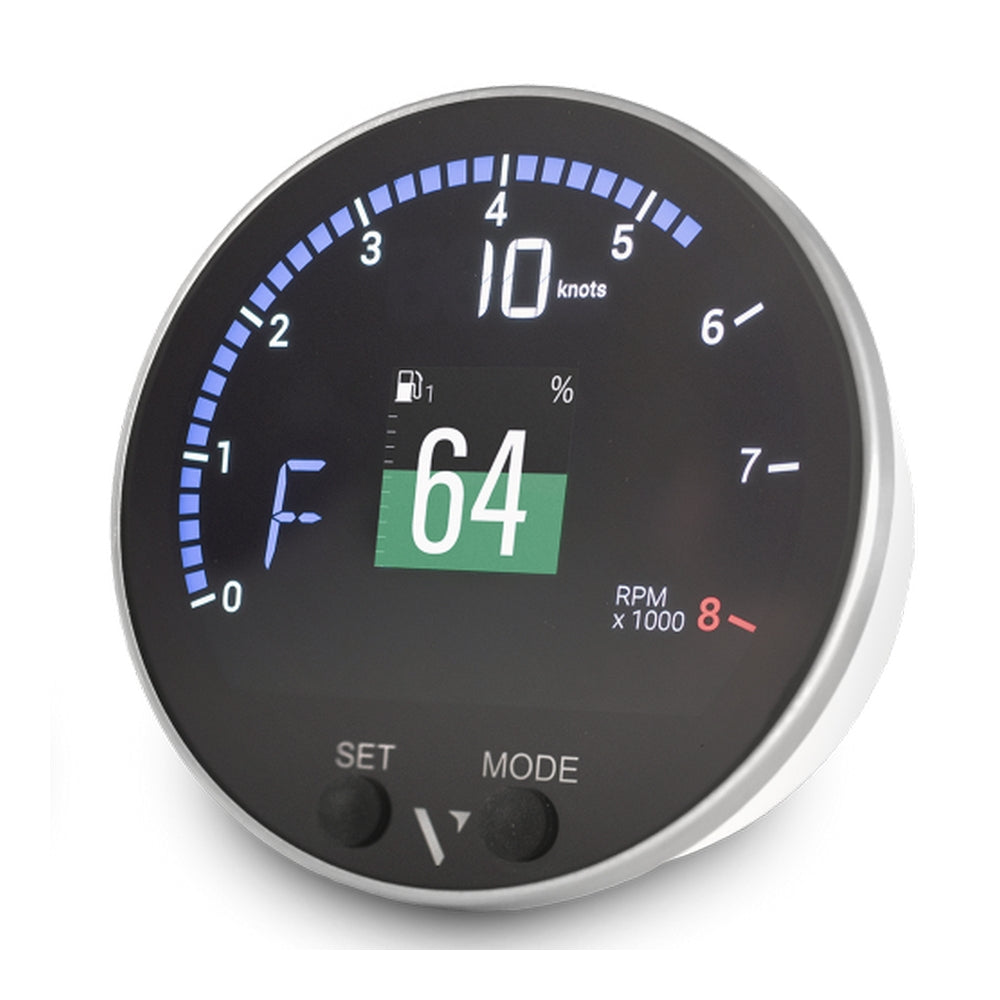

Veratron VMH 35 Multifunction 85mm Display
The Veratron VMH 35 is a versatile 3.5-inch multifunction display designed to give you detailed and essential data from your boat’s systems. This compact gauge is part of the premium VMH instrument series, crafted to deliver a streamlined and harmonious look to your vessel's dashboard.
- 3.5-inch colour hybrid display, visible in direct sunlight
- Durable mineral glass front lens with brushed stainless-steel ring
- Integrated light sensor for automatic brightness adjustment
- Two soft-touch buttons for easy navigation and configuration
- Intelligent Battery Sensor (IBS) port to monitor 12V battery status and health
- Can display data from up to four engines via NMEA 2000, or two engines with J1939 or analog inputs
- Supports more than 30 data types, including engine speed, fuel level, GPS position, depth, and more
- Customizable start-up and GUI screens to suit individual preferences
- Compatible with VMH master devices like the VMH 70 for broader data connectivity
- Wireless configuration via the Veratron App and AirWave technology
- Stylish black-glass design with an aluminium case, rated at IP X7 protection
Key Features of the Veratron VMH 35
- Black-glass design with a brushed stainless-steel ring for a modern look
- Sun-readable colour hybrid display with intelligent light sensor for visibility in all conditions
- Integrated Intelligent Battery Sensor (IBS) port to monitor battery status
- Analog to NMEA 2000 gateway for seamless connectivity with various systems
- High-performance GNSS receiver for accurate location data
- NMEA 2000 certified for integration with a wide range of marine electronics
Specifications of the Veratron VMH 35
- Nominal voltage: 12 V
- Operating voltage range: 9 - 16 V
- Current consumption: ≤ 150 mA in normal mode
- Protection class: IP X7 (suitable for marine environments)
- Dimensions: 100 mm outer diameter, 85 mm mounting hole
- Display: Colour IBN + 1.44" TFT optically bonded screen
- Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
-
