SKU:
CN NA2C59512343
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Waste Water Level gauge in white provides reliable waste water level monitoring, with a capacitive sender and accurate readings. It is ideal for harsh marine environments and features white LED backlighting for easy visibility.
- Description
- Ask a Question
-

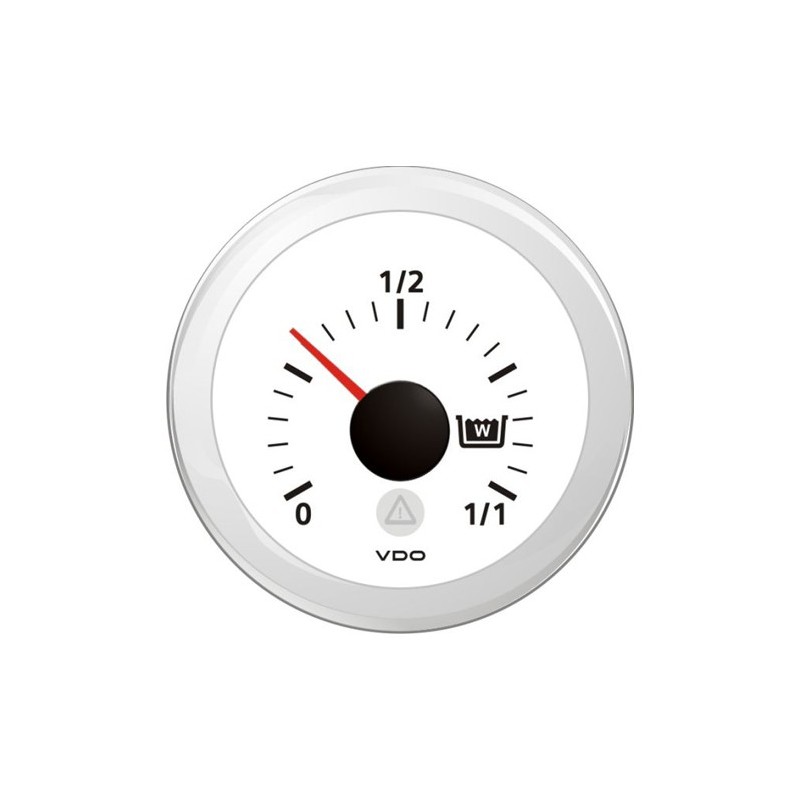

Veratron ViewLine Waste Water Level 4-20mA White 52mm
The Veratron ViewLine Waste Water Level gauge in white offers accurate monitoring with a sleek design and reliable functionality. Ideal for use in harsh conditions, this device ensures precision in waste water level measurement.
- Sizes and mounting: Installation (Hole) diameter: 52 mm (2 1/16 Inch), Outside diameter: 59 mm (2 1/3 Inch), Installation depth: 50 mm
- Locking height: Spinlock nut: 0.5 mm - 20 mm, Bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality: Waste water level range: 0 - 1/2 - 1/1, Sensor input: Veratron Capacitive sender 4-20mA, Accuracy: < 2.5% of full scale
- Connection: Hirschmann 8 pins MQS connector
- Power supply: Operating voltage: 8 to 32 V DC, Current consumption: < 140 mA, Reverse polarity protection: Yes (5 minutes), Short circuit protection: Yes (1 minute)
- Dial & Pointer: Deflection angle: 90°, Dial color: White, Dial Illumination: Amber LED backlight (605nm), Pointer: Red LED backlight, Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
