SKU:
CN NA2C59512342
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Waste Water Level gauge in black is designed for precise monitoring of waste water levels, offering a range of 0-1/2-1/1. It features a capacitive sender and includes amber LED backlighting for clear visibility.
- Description
- Ask a Question
-

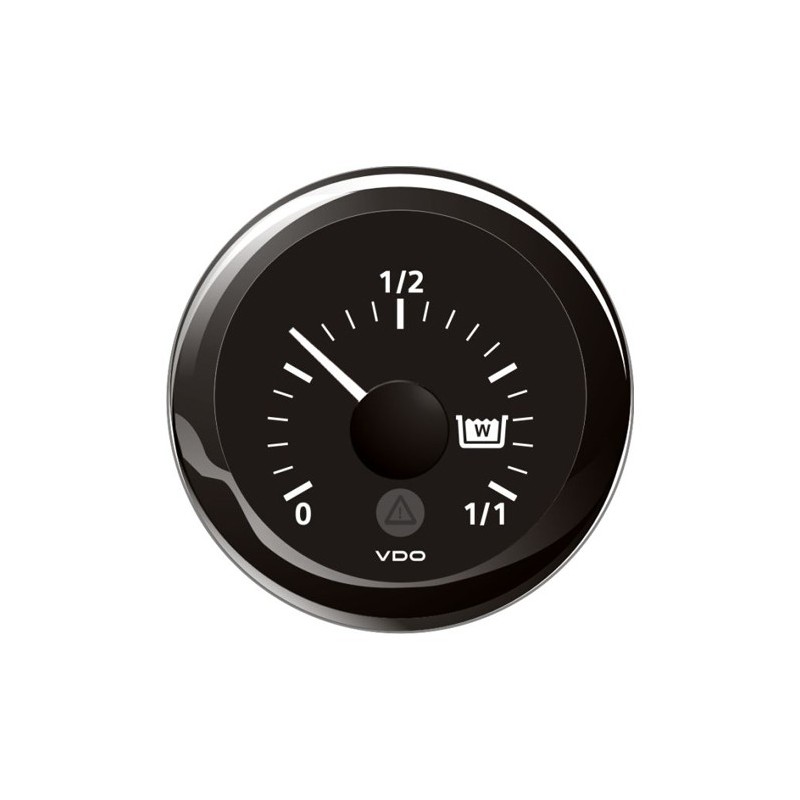

Veratron ViewLine Waste Water Level 4-20mA Black 52mm
The Veratron ViewLine Waste Water Level gauge offers accurate monitoring of waste water levels with a sleek black design. This device is optimized for reliable performance in a range of marine and industrial applications.
- Sizes and mounting: Installation (Hole) diameter: 52 mm (2 1/16 Inch), Outside diameter: 59 mm (2 1/3 Inch), Installation depth: 50 mm
- Locking height: Spinlock nut: 0.5 mm - 20 mm, Bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality: Waste water level range: 0 - 1/2 - 1/1, Sensor input: Veratron Capacitive sender 4-20mA, Accuracy: < 2.5% of full scale
- Connection: Hirschmann 8 pins MQS connector
- Power supply: Operating voltage: 8 to 32 V DC, Current consumption: < 140 mA, Reverse polarity protection: Yes (5 minutes), Short circuit protection: Yes (1 minute)
- Dial & Pointer: Deflection angle: 90°, Dial color: Black, Dial Illumination: Amber LED backlight (605nm), Pointer: White LED backlight, Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
