SKU:
CN NA2C59512546
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Voltmeter 8-16V White 52 mm offers the same voltage measurement range and installation options as the black version but features a stylish white dial. It has amber LED backlighting, a white pointer with red LED illumination, and a red warning LED for easy visibility. The voltmeter is powered by 8 to 16V DC and includes reverse polarity and short circuit protection, with a connection via an 8-pin Hirschmann MQS connector.
- Description
- Ask a Question
-

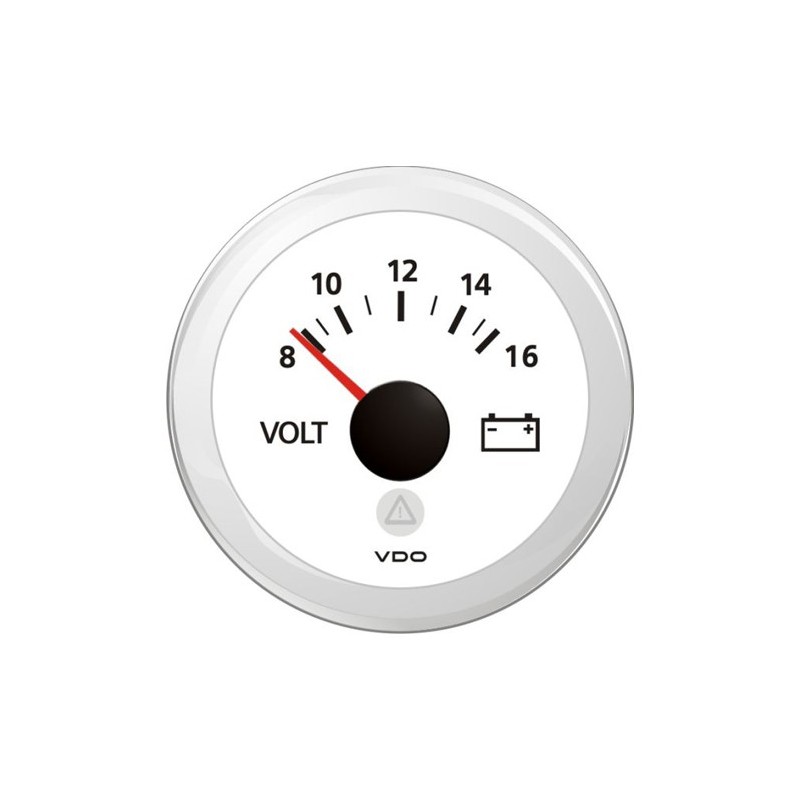

Veratron ViewLine Voltmeter 8-16V White 52 mm
The Veratron ViewLine Voltmeter is a precise and reliable instrument designed to measure DC voltage within the 8-16V range. It is built for easy installation and clear display of voltage data with a stylish white dial. Here are the key features:
- Sizes and Mounting: Installation (Hole) diameter: 52 mm (2 1/16 Inch), Outside diameter: 59 mm (2 1/3 Inch), Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket (Optional): 2 mm - 15 mm
- Flushmount: Optional kit A2C59510864
- Functionality: Voltmeter range: 8 to 16V DC, Signal input: 0 to 16V DC Battery power, Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply: Operating voltage: 8 to 16V DC, Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes, 5 Minutes
- Short circuit protection: Yes, 1 Minute
- Dial & Pointer: 90° deflection angle, White dial, Amber LED backlight, Red LED pointer backlight, Red LED warning light
- Programming: Veratron USB software kit
-
