SKU:
CN NA2C59512545
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Voltmeter 8-16V Black 52 mm is designed to measure DC voltage in the range of 8 to 16V, offering reliable performance and easy installation. It features a 52 mm installation diameter, a 59 mm outside diameter, and a 50 mm installation depth. The voltmeter is powered by a 8-16V DC input, with reverse polarity and short circuit protection. It also includes amber LED backlighting, white pointer illumination, and a red warning LED.
- Description
- Ask a Question
-

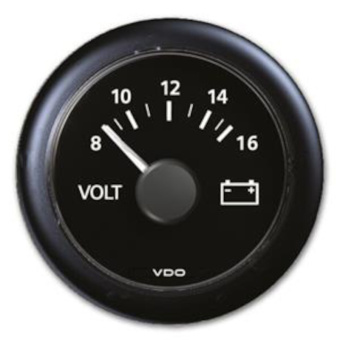

Veratron ViewLine Voltmeter 8-16V Black 52 mm
This voltmeter is designed to measure 8 to 16V DC, offering precision and durability for your electrical needs.
- Sizes and Mounting:
- Installation (Hole) diameter: 52 mm (2 1/16 Inch)
- Outside diameter: 59 mm (2 1/3 Inch)
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Voltmeter measurement range: 8 to 16V DC
- Signal input voltmeter: 0 to 16V DC Battery power
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply:
- Operating voltage: 8 to 16 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: Black
- Dial Illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and Mounting:
-
