SKU:
CN NA2C59512459
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Voltmeter 18-32V White 52mm provides precise voltage measurement between 18V and 32V DC in a sleek white dial design. It offers amber LED backlighting and red warning LEDs for visibility. The device is built for marine environments and includes reverse polarity and short circuit protection, making it reliable for various applications.
- Description
- Ask a Question
-

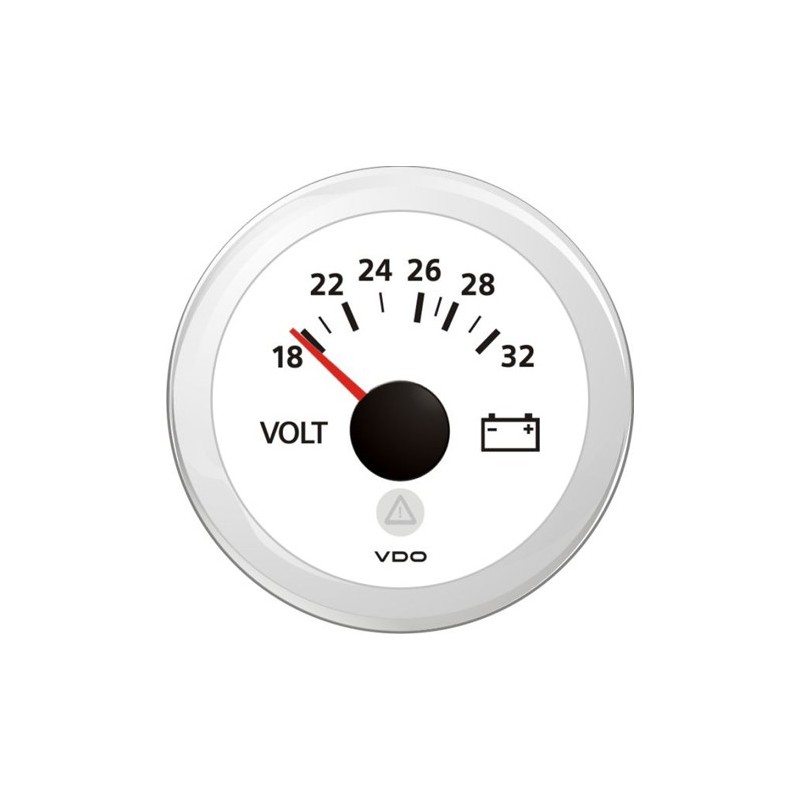

Veratron ViewLine Voltmeter 18-32V White 52 mm
This voltmeter is designed for marine use, providing accurate voltage readings for a range of 18 to 32V DC.
- Sizes and Mounting:
- Installation (Hole) diameter: 52 mm (2 1/16 Inch)
- Outside diameter: 59 mm (2 1/3 Inch)
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Voltmeter measurement range: 18 to 32V DC
- Signal input voltmeter: 0 to 32V DC Battery power
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply:
- Operating voltage: 18 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Design:
- Model: Veratron ViewLine Marine
- Lens: Dual - Anti-glare - Anti-Fog
- Standard bezel: Round white (Interchangeable)
- Sizes and Mounting:
-
