SKU:
CN NA2C59512395
€ 205,50
1-2 weeks delivery time
-
+
The Veratron ViewLine Tachometer 8.000 RPM Black 85mm offers accurate RPM readings with a range from 0 to 8,000 RPM. Designed for various engine types, it features a sleek black dial, amber LED backlighting, and a white pointer with red warning LEDs. With a variety of sensor input options, it ensures reliable performance and easy monitoring of engine hours, voltage, and clock.
- Description
- Ask a Question
-

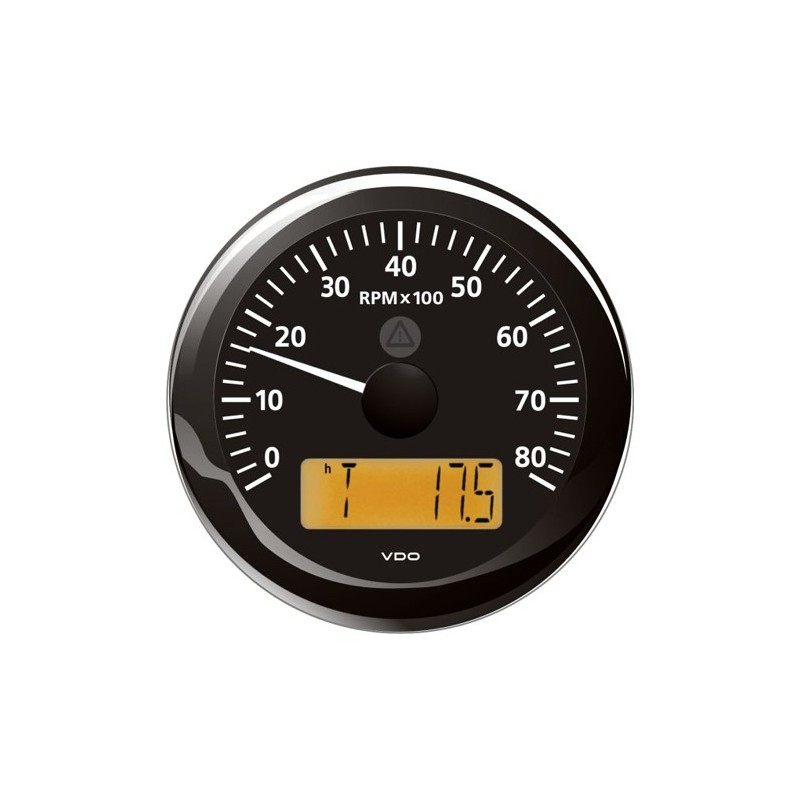

Veratron ViewLine Tachometer 8.000 RPM Black 85mm
The Veratron ViewLine Tachometer 8.000 RPM Black 85mm is designed to provide accurate RPM readings for a range of engine types. With advanced features and durable construction, it ensures reliable performance and precise monitoring of engine activity.
- Sizes and Mounting:
- Installation (Hole) diameter: 85 mm (3 3/8 Inch)
- Outside diameter: 93 mm (3 2/3 Inch)
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Analog RPM measurement range: 0 to 8,000 RPM
- Display functionality: Engine hours counter, Voltmeter, Clock
- Sensor signal input tachometer: Alternator terminal (W), Ignition terminal (1), Outboard engine (Lightning coil), NMEA 0183
- Accuracy: ± 2.5% of full scale reading
- Connection: Hirschmann 8 & 14 pins MQS connector
- Power Supply:
- Operating voltage: 8 to 32 V DC
- Current consumption: < 175 mA including warning LED
- Reverse polarity protection: Yes (1 minute)
- Short circuit protection: Yes (1 minute)
- Dial & Pointer:
- Deflection angle: 240°
- Dial color: Black
- Dial illumination: Amber LED backlight (605nm)
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and Mounting:
-
