SKU:
CN NA2C59512397
€ 205,50
1-2 weeks delivery time
-
+
The Veratron ViewLine Tachometer 4.000 RPM White 85mm provides accurate RPM measurements with a range of 0 to 4,000 RPM. Its white dial and red LED backlighting ensure visibility, while the device also functions as an engine hours counter, voltmeter, and clock. It is designed to work with various sensor inputs and offers reliability for diverse applications.
- Description
- Ask a Question
-

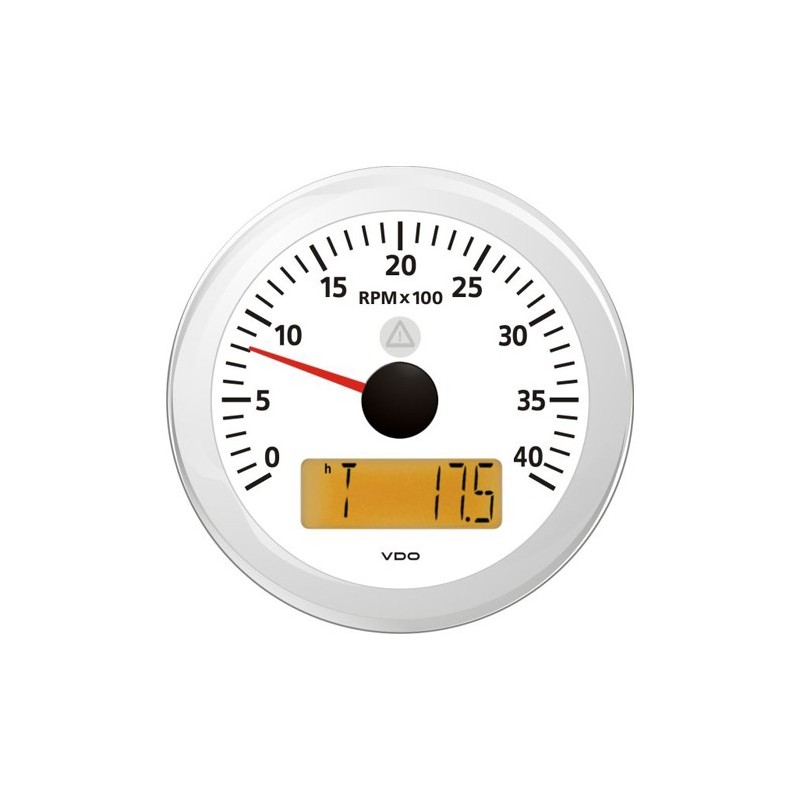

Veratron ViewLine Tachometer 4.000 RPM White 85mm
The Veratron ViewLine Tachometer 4.000 RPM White 85mm is designed to meet the needs of professionals requiring accurate RPM readings. Its user-friendly features and durability make it an excellent choice for diverse applications.
- Sizes and Mounting:
- Installation (Hole) diameter: 85 mm (3 3/8 Inch)
- Outside diameter: 93 mm (3 2/3 Inch)
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Analog RPM measurement range: 0 to 4,000 RPM
- Display functionality: Engine hours counter, Voltmeter, Clock
- Sensor signal input tachometer: Alternator terminal (W), Ignition terminal (1), Outboard engine (Lightning coil), NMEA 0183
- Accuracy: ± 2.5% of full scale reading
- Connection: Hirschmann 8 & 14 pins MQS connector
- Power Supply:
- Operating voltage: 8 to 32 V DC
- Current consumption: < 175 mA including warning LED
- Reverse polarity protection: Yes (1 minute)
- Short circuit protection: Yes (1 minute)
- Dial & Pointer:
- Deflection angle: 240°
- Dial color: White
- Dial illumination: Amber LED backlight (605nm)
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and Mounting:
-
