SKU:
CN NA2C59512411
€ 122,21
1-2 weeks delivery time
-
+

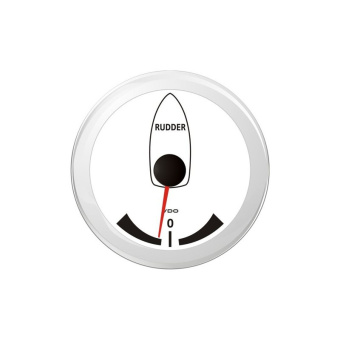

The Veratron ViewLine Rudder Angle Indicator White 85mm offers accurate rudder angle monitoring in marine settings, with a range of -45° to +45°. The white dial is illuminated with amber LED backlighting, while the pointer glows with red LED light. With a durable design, this device includes protection against reverse polarity and short circuits for added reliability.
- Description
- Ask a Question
-

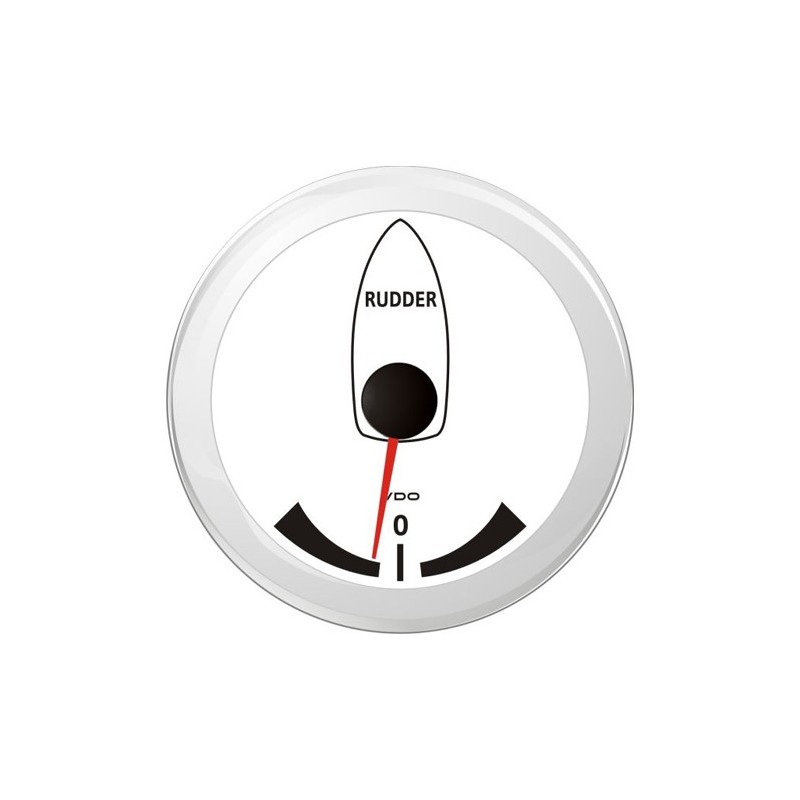

Veratron ViewLine Rudder Angle Indicator White 85mm
The Veratron ViewLine Rudder Angle Indicator in white combines functionality with an elegant look, designed for marine use with high-performance accuracy and durability.
- Sizes and Mounting:
- Installation (Hole) diameter: 85 mm - 3 3/8 Inch
- Outside diameter: 93 mm - 3 2/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Rudder angle range: -45° to +45°
- Sensor signal input rudder gauge: Veratron 440-102-001-001D Rudder angle sender 3-180 Ohm
- Accuracy: ± 2.5% of full scale reading
- Connection: Hirschmann 8 & 14 pins MQS connector
- Power Supply:
- Operating voltage: 8 to 32 V DC
- Current consumption: < 175 mA including warning LED
- Reverse polarity protection: Yes - 1 Minute
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming:
- Veratron USB software kit
- Design:
- Model: Veratron ViewLine Marine
- Lens: Dual - Anti-glare - Anti-Fog
- Standard bezel: Round white (Interchangeable)
- Sizes and Mounting:
-
