SKU:
CN NA2C59514230
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Rudder Angle Indicator White 52mm accurately tracks the rudder angle for safe vessel operation. It has a 52mm installation diameter and provides a rudder angle range from -40° to +40°. The device uses a Veratron 440-102-001-001D rudder angle sender and includes features like amber LED backlighting and a red warning LED, with an accuracy of less than 4% of the full scale reading.
- Description
- Ask a Question
-

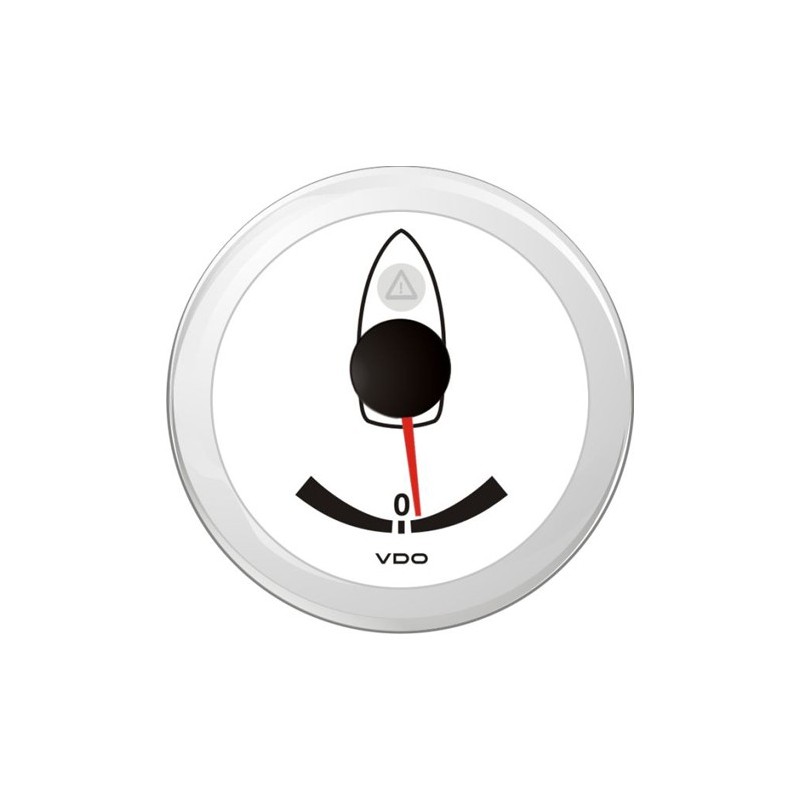

Veratron ViewLine Rudder Angle Indicator White 52mm
This device is essential for accurately tracking the rudder angle, ensuring optimal performance and safe operation of your vessel.
- Sizes and mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Rudder angle range: -40° to +40°
- Sensor signal input rudder gauge: Veratron 440-102-001-001D Rudder angle sender 3-180 Ohm
- Accuracy: < 4% of full scale reading
- Connection: Hirschmann 8 & 14 pins MQS connector
- Power supply:
- Operating voltage: 8 to 32 V DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 80°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and mounting:
-
