SKU:
CN NA2C59512410
€ 122,21
1-2 weeks delivery time
-
+
The Veratron ViewLine Rudder Angle Indicator Black 85mm is a high-precision device designed for marine environments, monitoring rudder angles from -45° to +45°. The black dial features amber backlighting, while the white LED pointer and red warning LEDs ensure optimal visibility. It includes multiple protection features like reverse polarity and short circuit protection.
- Description
- Ask a Question
-

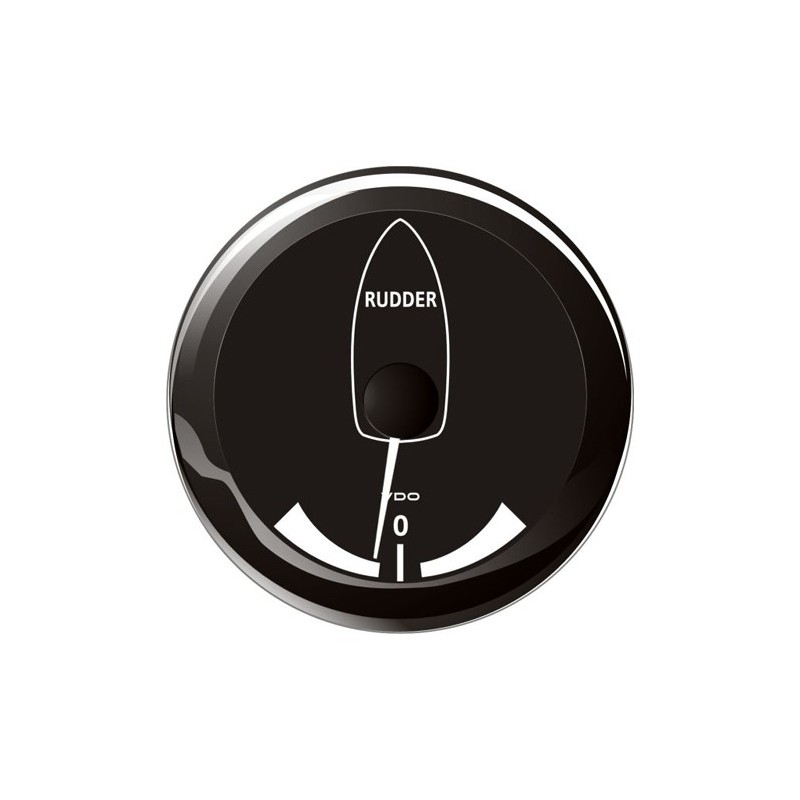

Veratron ViewLine Rudder Angle Indicator Black 85mm
Discover the Veratron ViewLine Rudder Angle Indicator in sleek black, perfect for marine applications. This advanced device ensures precise rudder angle monitoring and is designed for durability in marine environments.
- Sizes and Mounting:
- Installation (Hole) diameter: 85 mm - 3 3/8 Inch
- Outside diameter: 93 mm - 3 2/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Rudder angle range: -45° to +45°
- Sensor signal input rudder gauge: Veratron 440-102-001-001D Rudder angle sender 3-180 Ohm
- Accuracy: ± 2.5% of full scale reading
- Connection: Hirschmann 8 & 14 pins MQS connector
- Power Supply:
- Operating voltage: 8 to 32 V DC
- Current consumption: < 175 mA including warning LED
- Reverse polarity protection: Yes - 1 Minute
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: Black
- Dial Illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming:
- Veratron USB software kit
- Design:
- Model: Veratron ViewLine Marine
- Lens: Dual - Anti-glare - Anti-Fog
- Standard bezel: Round black (Interchangeable)
- Sizes and Mounting:
-
