SKU:
CN NA2C59512618
€ 68,43
1-2 weeks delivery time
-
+

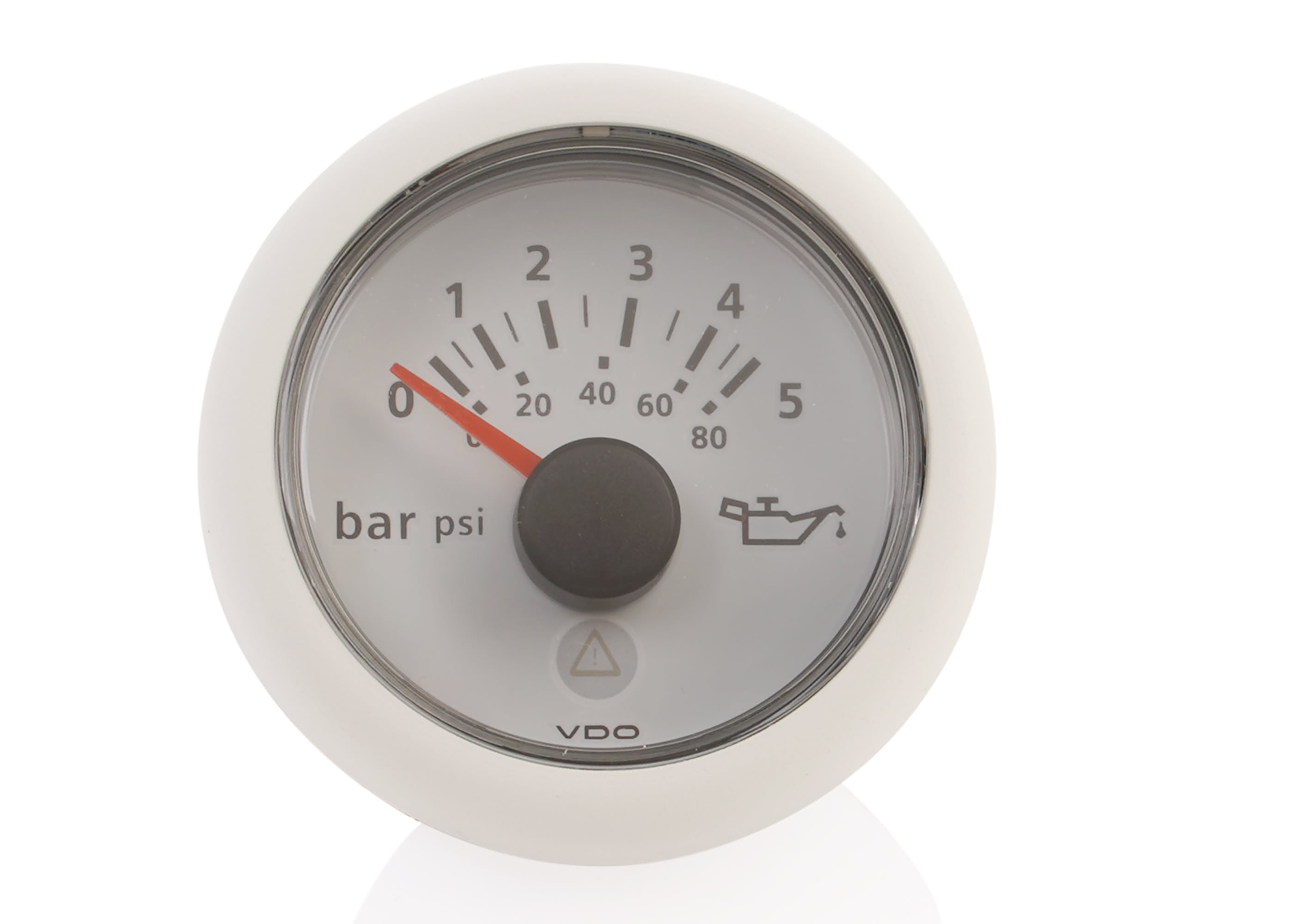

The Veratron ViewLine Pressure Gauge Transmission 0-5 Bar 12V / 52 mm / White is designed to monitor the oil circulation system and turbocharger boost pressure. It measures up to 5 bar and is equipped with a 52 mm white dial. The gauge includes reverse polarity protection, a warning LED, and a connection via an 8-pole MQS plug. It has a removable front bezel with an IP67 rating and an anti-mist feature for improved durability.
- Description
- Ask a Question
-
Veratron Viewline Pressure Gauge Transmission 0-5 Bar 12V / 52 mm / White
The Veratron ViewLine Pressure Gauge is designed for monitoring the oil circulation system and turbocharger boost pressure. With a clear white dial, it offers a reliable way to track pressure readings up to 5 bar. Check out the key features:
- Pressure Measurement: Detects irregularities in engine and transmission oil circulation as well as turbocharger boost pressure. Measures up to 5 bar.
- Operating Voltage: 10-16V or 16-32V with series resistor
- Reverse Polarity Protection: Yes
- Power Consumption: < 130 mA
- LED Warning Light: Included
- Connection: 8-pole MQS plug Tyco/Hirschmann
- Input: Standard resistance values (10-180 ohms), insulated
- Mounting Diameter: 52 mm
- Installation Depth: 60 mm
- Removable Front Bezel Diameter: 62.5 mm, available in white or black
- Anti-Mist Feature: Double lens
- Front Bezel Compliance: IP 67
- Optional Warning Point Adjuster: Required for red LED warning lamp
- Matching Sensor: Available separately
-
