SKU:
CN NA2C59501782
€ 284,59
1-2 weeks delivery time
-
+
The Veratron ViewLine GPS Speedometer in black, with a 110 mm diameter, offers accurate speed monitoring with a range of 0–35 knots. It features multiple display functions, built-in GPS antenna, and works with NMEA 2000 systems for reliable marine performance.
- Description
- Ask a Question
-

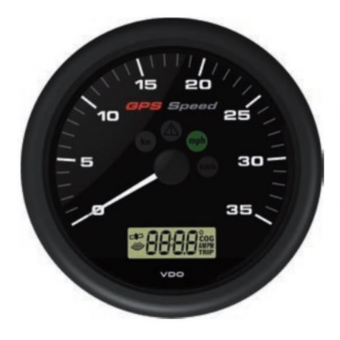

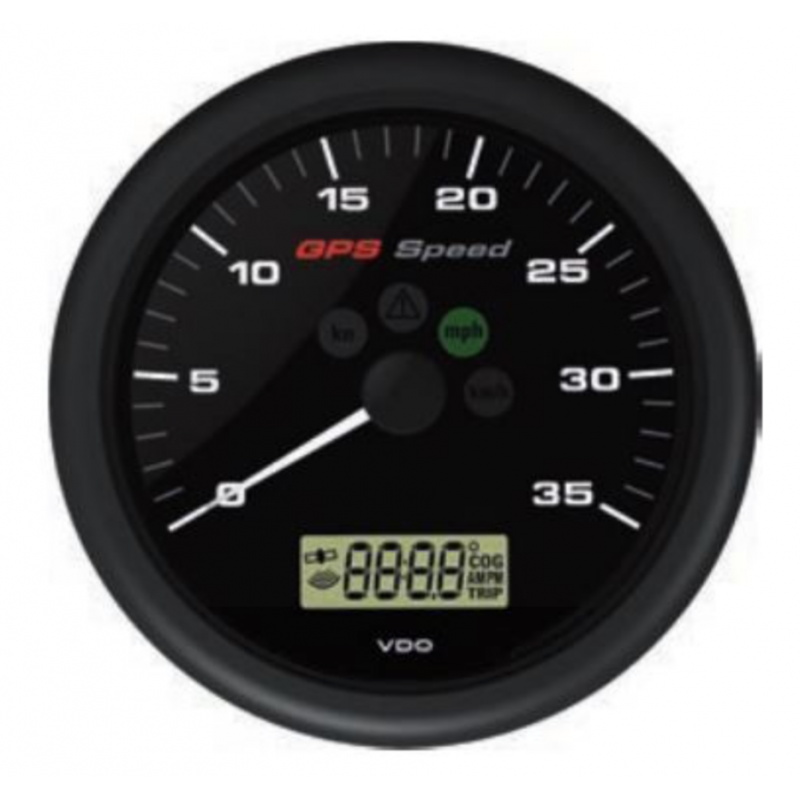

Veratron ViewLine GPS Speedometer 0-35 kn Black 110 mm
This Veratron ViewLine GPS Speedometer offers a precise and reliable solution for monitoring speed on your marine vessel.
- Sizes and Mounting:
- Installation (Hole) diameter: 110 mm (4 3/8 Inch)
- Outside diameter: 126 mm (5 Inch)
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Analog speed range: 0 to 35 Knots, Km/h, Mph
- Display functions: Course Over Ground, GPS-Time, Trip, Odometer, Maximum speed
- Signal input GPS speedometer: NMEA 2000
- Compatible sensors: Built-in GPS Antenna
- Accuracy: ± 2.5% of full scale reading
- Connection:
- Hirschmann 8 pins MQS connector
- Power Supply:
- Operating voltage: 8 to 16 Volt DC
- Current consumption: < 175 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 240°
- Dial colour: Black
- Dial illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming:
- Veratron USB software kit
- Design:
- Model: Veratron ViewLine Marine
- Lens: Dual - Anti-glare - Anti-Fog
- Standard bezel: Round black (Interchangeable)
- Sizes and Mounting:
-
