SKU:
CN NA2C59514182
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Fuel Level Gauge 90-4 Ohm White 52mm is a precise and reliable instrument designed for marine or automotive use. It features a white dial with LED backlighting for clear visibility and accurate fuel level readings. The gauge has a 52mm installation diameter, with a fuel level measurement range from 0 to full, and uses a 90 Ohm resistance when empty and 4 Ohm when full. It also offers reverse polarity and short circuit protection, ensuring safety and durability.
- Description
- Ask a Question
-

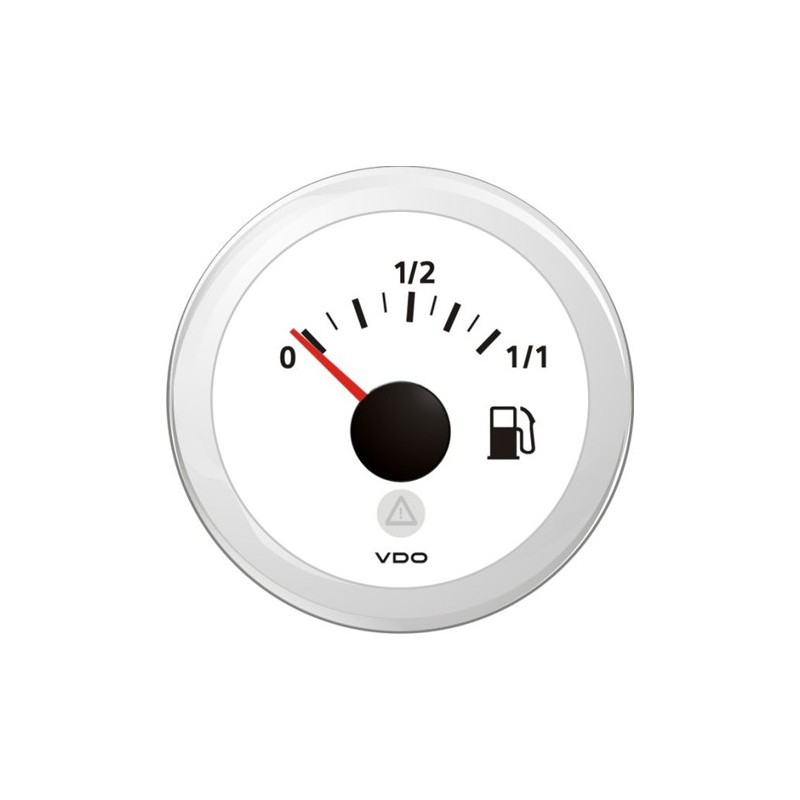

Veratron ViewLine Fuel Level 90-4 Ohm White 52mm
Introducing the Veratron ViewLine Fuel Level Gauge, designed to accurately measure fuel levels for your marine or automotive applications. With a sleek white dial and LED backlighting, it ensures easy readability and reliability.
- Sizes and Mounting: Installation (Hole) diameter: 52 mm (2 1/16 Inch), Outside diameter: 59 mm (2 1/3 Inch), Installation depth: 50 mm
- Locking height: With Spinlock nut: 0.5 mm - 20 mm, With bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Fuel level measurement range: 0 - 1/2 - 1/1
- Resistance: Empty: 90 Ohm, Full: 4 Ohm
- Sensor signal input: Veratron Dip pipe sender 90 - 4 Ohm EU
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power supply: Operating voltage: 8 - 32 V DC, Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer: Deflection angle: 90°, Dial colour: White, Dial illumination: Amber LED backlight (605nm), Pointer: Red LED backlight, Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
