SKU:
CN NA2C59514079
€ 74,66
1-2 weeks delivery time
-
+

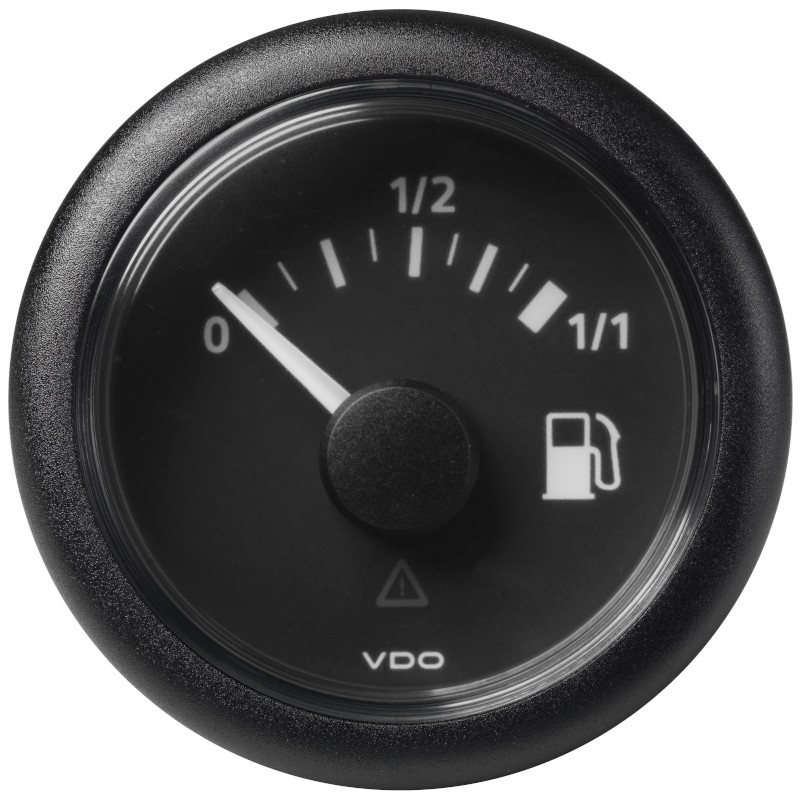

The Veratron ViewLine Fuel Level 90-4 Ohm Black 52mm is a fuel level gauge designed to offer precise monitoring of fuel levels. It measures fuel levels with a resistance range of 90 ohms (empty) to 4 ohms (full) and features a 52mm installation diameter. The gauge includes amber LED backlighting, a white LED pointer, and a red warning LED. It also offers reverse polarity and short circuit protection, with compatibility with Veratron Dip pipe senders for accurate readings.
- Description
- Ask a Question
-

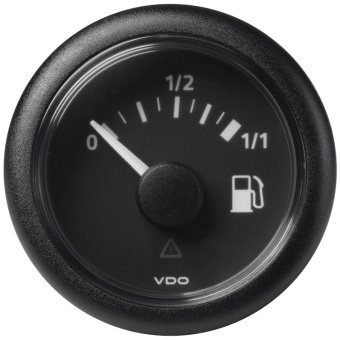

Veratron ViewLine Fuel Level 90-4 Ohm Black 52mm
This fuel level gauge offers a precise and reliable way to monitor your fuel levels. Its sleek 52mm design is ideal for various applications.
- Sizes and Mounting: Installation (Hole) diameter: 52mm (2 1/16 Inch), Outside diameter: 59mm (2 1/3 Inch), Installation depth: 50mm
- Locking Height: With Spinlock nut: 0.5mm - 20mm, With bracket: 2mm - 15mm (Optional)
- Flushmount: Optional kit A2C59510864
- Fuel Level Measurement Range: 0 - 1/2 - 1/1
- Resistance: Empty: 90 Ohm, Full: 4 Ohm
- Sensor Signal Input: Veratron Dip pipe sender 90 - 4 Ohm EU
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply: Operating voltage: 8 - 32 V DC, Current consumption: < 140 mA including warning LED
- Protection: Reverse polarity protection (5 minutes), Short circuit protection (1 minute)
- Dial & Pointer: Deflection angle: 90°, Dial colour: Black, Amber LED backlight (605nm), White LED backlight for pointer
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
