SKU:
CN NA2C59514184
€ 74,66
1-2 weeks delivery time
-
+

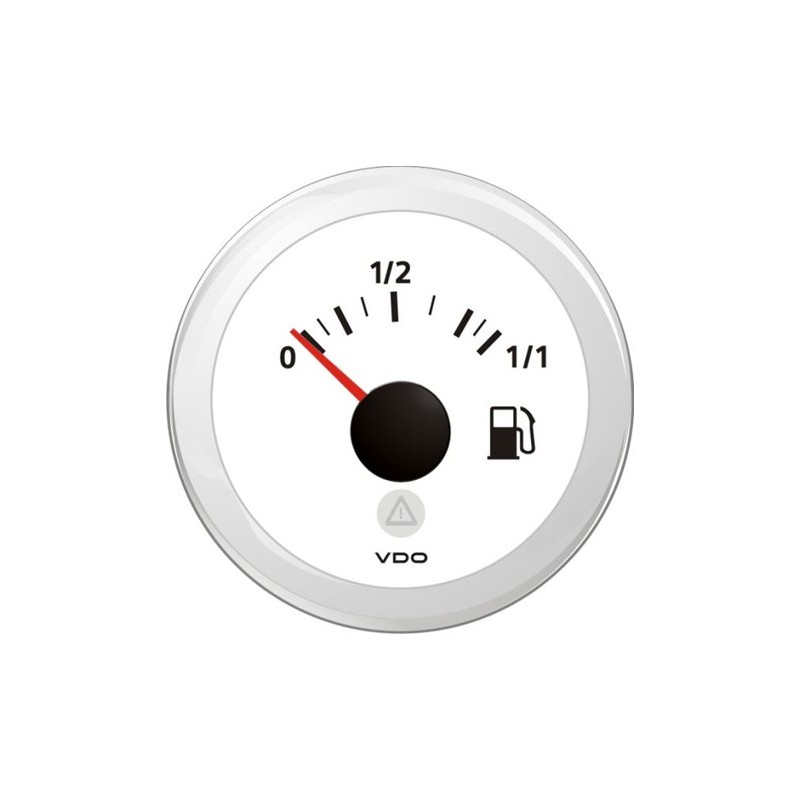

The Veratron ViewLine Fuel Level 3-180 Ohm White 52mm provides accurate fuel level measurements for marine and automotive applications, featuring a white dial and a red LED pointer. It operates within a 3-180 Ohm range for fuel sensors and comes with a 52mm installation diameter, offering a clear 0 to full fuel reading. The gauge is designed with reverse polarity and short circuit protection, ensuring longevity and reliability in various conditions.
- Description
- Ask a Question
-
Veratron ViewLine Fuel Level 3-180 Ohm White 52mm
The Veratron ViewLine Fuel Level Gauge with a 3-180 Ohm range offers accurate fuel level measurements, perfect for various applications in marine and automotive systems. Its user-friendly design includes a red LED pointer and amber backlight.
- Sizes and Mounting: Installation (Hole) diameter: 52 mm (2 1/16 Inch), Outside diameter: 59 mm (2 1/3 Inch), Installation depth: 50 mm
- Locking height: With Spinlock nut: 0.5 mm - 20 mm, With bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Fuel level measurement range: 0 - 1/2 - 1/1
- Resistance: Empty: 3 Ohm, Full: 180 Ohm
- Sensor signal input: Veratron Lever arm sender 3 - 180 Ohm EU
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power supply: Operating voltage: 8 - 32 V DC, Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer: Deflection angle: 90°, Dial colour: White, Dial illumination: Amber LED backlight (605nm), Pointer: Red LED backlight, Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
