SKU:
CN NA2C59514082
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Fuel Level Gauge offers precise fuel level measurements from 3 Ohm to 180 Ohm in a 52mm design. It features a range of mounting options and includes a Hirschmann 8-pin MQS connector. The gauge has an amber LED backlight, white LED pointer illumination, and a red warning LED. It operates with 8-32 V DC and has protection against reverse polarity and short circuits. The accuracy is < 3.6 angular degrees, and it can be programmed with the Veratron USB software kit.
- Description
- Ask a Question
-

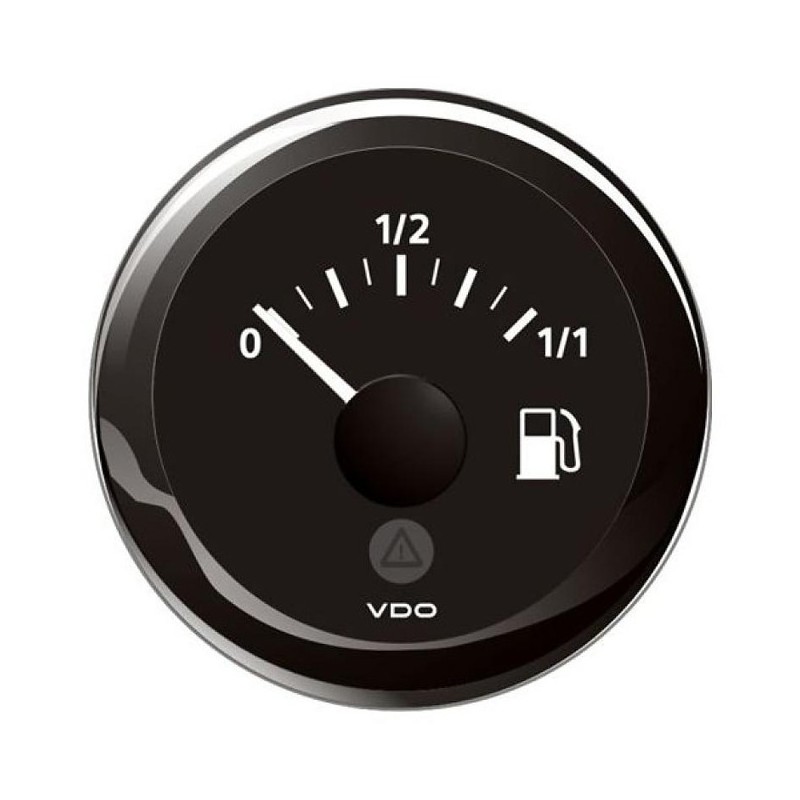

Veratron ViewLine Fuel Level 3-180 Ohm Black 52mm
This fuel level gauge features a versatile design, measuring fuel levels from 3 Ohm to 180 Ohm. The 52mm size provides a perfect fit for your dashboard.
- Sizes and Mounting: Installation (Hole) diameter: 52mm (2 1/16 Inch), Outside diameter: 59mm (2 1/3 Inch), Installation depth: 50mm
- Locking Height: With Spinlock nut: 0.5mm - 20mm, With bracket: 2mm - 15mm (Optional)
- Flushmount: Optional kit A2C59510864
- Fuel Level Measurement Range: 0 - 1/2 - 1/1
- Resistance: Empty: 3 Ohm, Full: 180 Ohm
- Sensor Signal Input: Veratron Lever arm sender 3 - 180 Ohm EU
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply: Operating voltage: 8 - 32 V DC, Current consumption: < 140 mA including warning LED
- Protection: Reverse polarity protection (5 minutes), Short circuit protection (1 minute)
- Dial & Pointer: Deflection angle: 90°, Dial colour: Black, Amber LED backlight (605nm), White LED backlight for pointer
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
