SKU:
CN NA2C59514677
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Fresh Water Level 4-20mA White 52mm is designed for accurate fresh water level monitoring, with a sleek white dial for better visibility. It uses a capacitive sender and has a range from 0 to 1/2 to 1/1. The gauge includes amber LED illumination, a red LED pointer, and a red warning LED, with an accuracy of less than 3.6 angular degrees. It operates with a voltage range of 8 to 32 V DC.
- Description
- Ask a Question
-

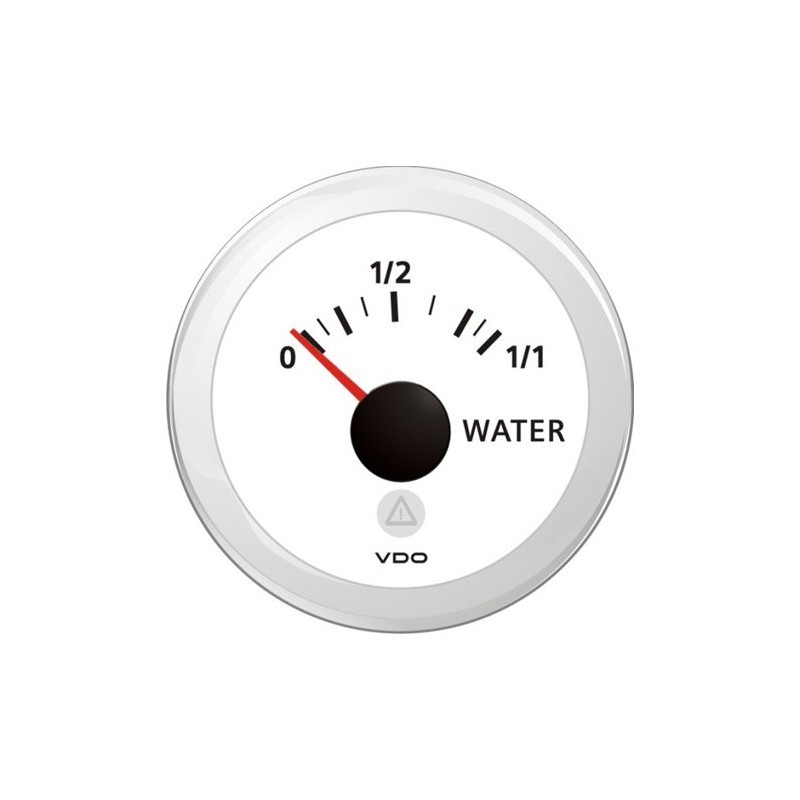

Veratron ViewLine Fresh Water Level 4-20mA White 52mm
This fresh water level gauge features a sleek design with a white dial for enhanced visibility and accuracy, ideal for marine and water-level monitoring applications.
- Sizes and Mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Fresh water level measurement range: 0 - 1/2 - 1/1
- Sensor signal input fresh water level gauge: Veratron Capacitive sender 4 - 20mA
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply:
- Operating voltage: 8 - 32 V DC
- Current consumption: < 60 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and Mounting:
-
