SKU:
CN NA2C59514097
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Fresh Water Level Gauge is designed for accurate readings of fresh water tanks in a 52mm design. It measures levels with a range of 0 to 1/1 and uses a Veratron Lever arm sender with a resistance range of 3-180 Ohm. The gauge features amber and white LED backlighting and operates with a voltage range of 8-32 V DC. Reverse polarity and short circuit protections are included, and the device can be programmed with the Veratron USB software kit.
- Description
- Ask a Question
-

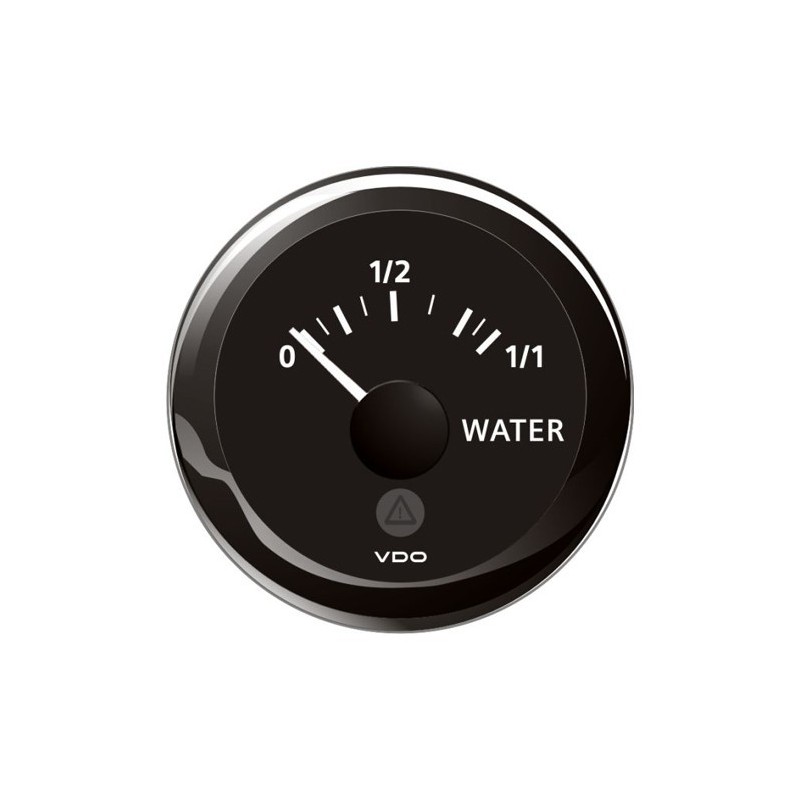

Veratron ViewLine Fresh Water Level 3-180 Ohm Black 52mm
This fresh water level gauge ensures precise readings for fresh water tanks, providing clarity and reliability in a compact 52mm design.
- Sizes and Mounting: Installation (Hole) diameter: 52mm (2 1/16 Inch), Outside diameter: 59mm (2 1/3 Inch), Installation depth: 50mm
- Locking Height: With Spinlock nut: 0.5mm - 20mm, With bracket: 2mm - 15mm (Optional)
- Flushmount: Optional kit A2C59510864
- Fresh Water Level Measurement Range: 0 - 1/2 - 1/1
- Sensor Signal Input: Veratron Lever arm sender 3 - 180 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply: Operating voltage: 8 - 32 V DC, Current consumption: < 140 mA including warning LED
- Protection: Reverse polarity protection (5 minutes), Short circuit protection (1 minute)
- Dial & Pointer: Deflection angle: 90°, Dial colour: Black, Amber LED backlight (605nm), White LED backlight for pointer
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
