SKU:
CN NA2C59514208
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Engine Oil Pressure Gauge 30Bar 52mm is designed for high-pressure systems, offering accurate readings from 0 to 30 Bar (0 to 435 PSI). This 52mm gauge has a white dial with red LED pointer and amber backlighting for visibility. It uses a Veratron Pressure sender to measure oil pressure precisely and provides reverse polarity and short circuit protection, ensuring dependable performance in demanding environments.
- Description
- Ask a Question
-

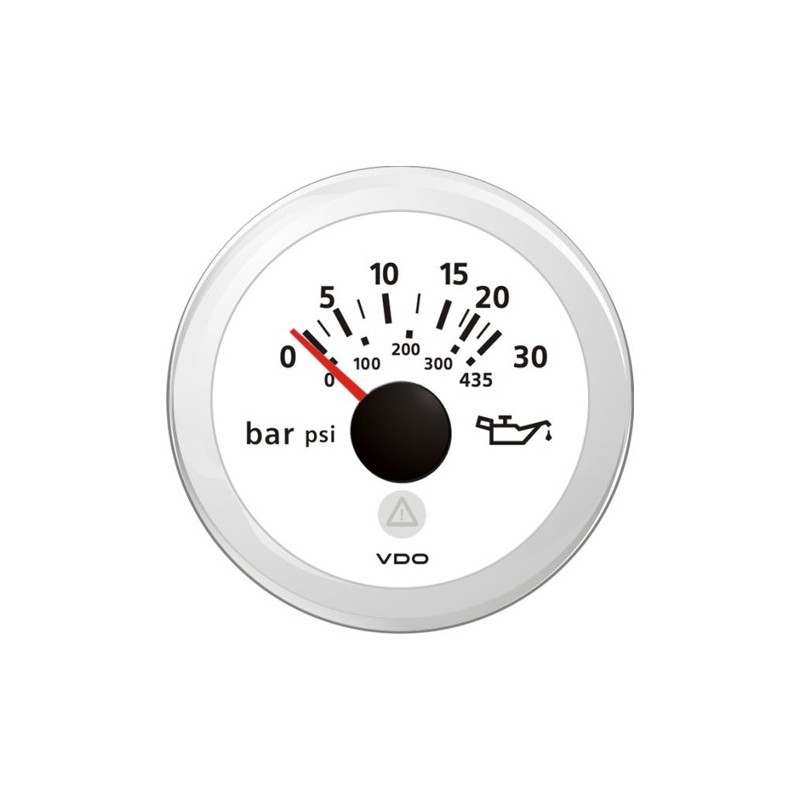

Veratron ViewLine Engine Oil Pressure 30Bar White 52mm
Designed for the highest pressure systems, this engine oil pressure gauge ensures precise readings for engines under extreme conditions.
- Sizes and mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Engine oil pressure upper scale range: 0 to 30 Bar
- Engine oil pressure under scale range: 0 to 435 PSI
- Sensor signal input engine oil pressure: Veratron Pressure sender 10 to 184 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power supply:
- Operating voltage: 8 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and mounting:
-
