SKU:
CN NA2C59514206
€ 74,66
1-2 weeks delivery time
-
+

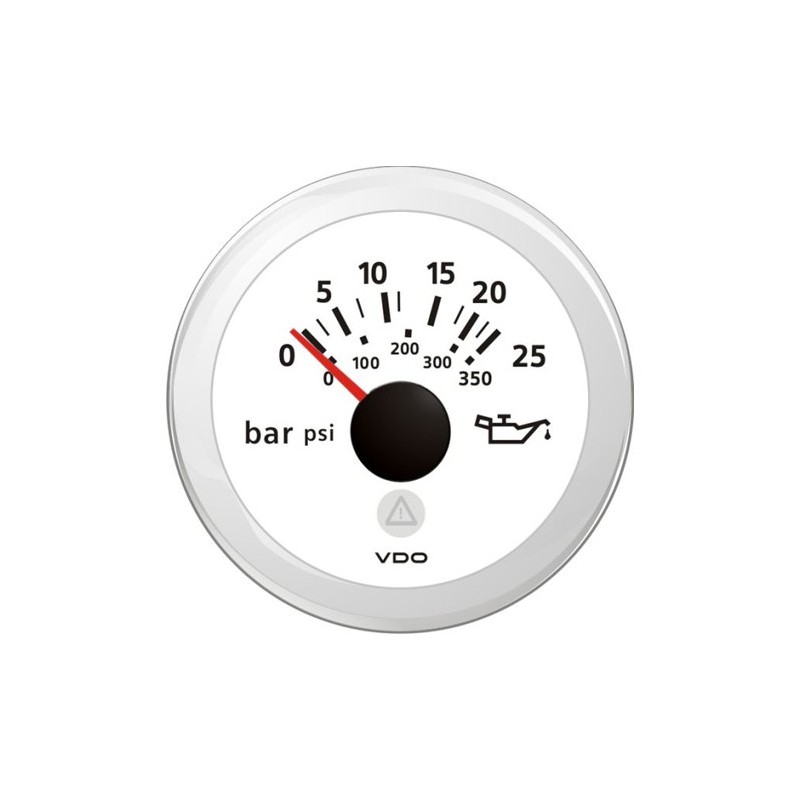

The Veratron ViewLine Engine Oil Pressure Gauge 25Bar 52mm is engineered to measure higher oil pressures, offering a wide range from 0 to 25 Bar (0 to 350 PSI). This 52mm gauge features a white dial with amber LED backlighting and a red LED pointer, ensuring clear readings under various conditions. The gauge connects to a Veratron Pressure sender and includes safety features like reverse polarity and short circuit protection for reliable operation.
- Description
- Ask a Question
-
Veratron ViewLine Engine Oil Pressure 25Bar White 52mm
This engine oil pressure gauge is engineered to measure a broader range of oil pressures, offering reliability for demanding applications.
- Sizes and mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Engine oil pressure upper scale range: 0 to 25 Bar
- Engine oil pressure under scale range: 0 to 350 PSI
- Sensor signal input engine oil pressure: Veratron Pressure sender 10 to 184 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power supply:
- Operating voltage: 8 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and mounting:
-
