SKU:
CN NA2C59514111
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Engine Oil Pressure Gauge offers precise monitoring of engine oil pressure in a 52mm size, with a scale range of 0-10 Bar or 0-150 PSI. It features a Hirschmann 8-pin MQS connector and an amber LED backlight with a white LED pointer. The gauge provides reverse polarity and short circuit protection and runs on 8-32 V DC. Its accuracy is less than 3.6 angular degrees, and it can be programmed using Veratron's USB software kit.
- Description
- Ask a Question
-

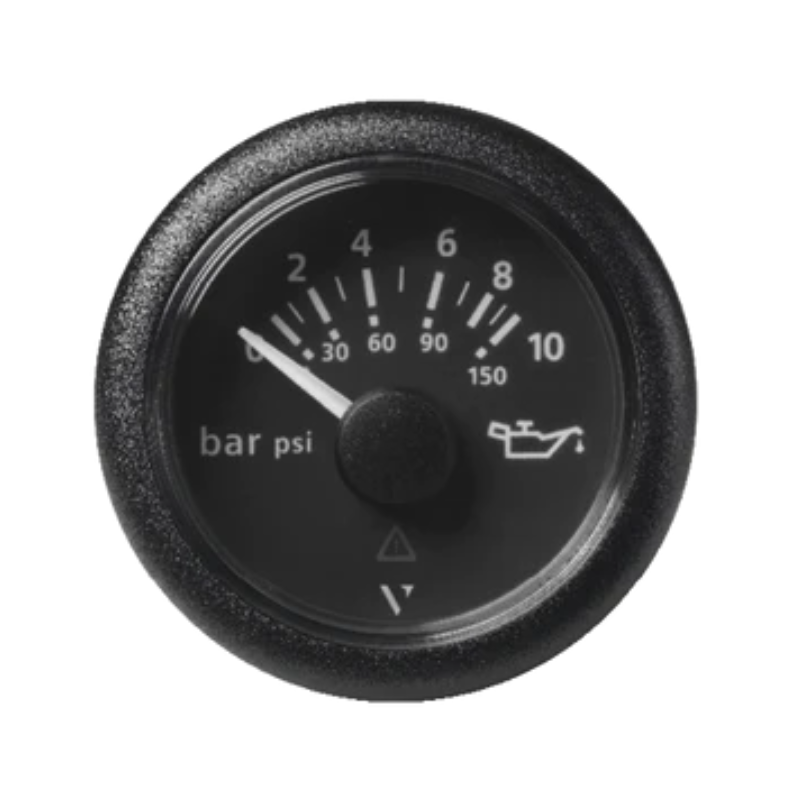

Veratron ViewLine Engine Oil Pressure 10Bar Black 52mm
This 52mm engine oil pressure gauge offers exceptional performance and accuracy for monitoring your engine's oil pressure levels. With a robust design and high-quality components, it is the ideal choice for vehicle and machinery applications.
- Sizes and Mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Engine oil pressure upper scale range: 0 to 10 Bar
- Engine oil pressure under scale range: 0 to 150 PSI
- Sensor signal input engine oil pressure: Veratron Pressure sender 10 to 184 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Successor(s): N02124744, N02-124-744
- Power Supply:
- Operating voltage: 8 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: Black
- Dial Illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming:
- Veratron USB software kit
- Sizes and Mounting:
-
