SKU:
CN NA2C59514237
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Coolant Temperature 120°C White 52mm offers accurate monitoring of coolant temperature to prevent overheating. It features a temperature range from +40°C to +120°C and uses a Veratron NTC thermistor for signal input. The 52mm gauge includes amber LED illumination, a red LED pointer, and a red warning LED, all with an accuracy of less than 3.6 angular degrees.
- Description
- Ask a Question
-

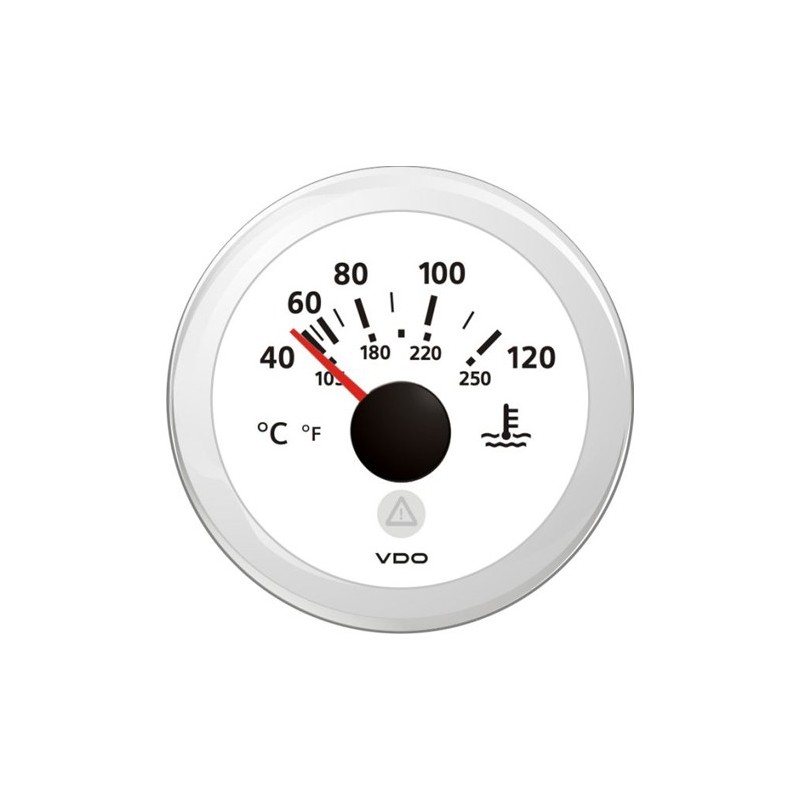

Veratron ViewLine Coolant Temperature 120°C White 52mm
This gauge ensures accurate monitoring of coolant temperature, preventing engine overheating and promoting long-term engine reliability.
- Sizes and mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Coolant temperature upper scale range: +40°C to +120°C
- Coolant temperature under scale range: +105°F to +250°F
- Sensor signal input coolant temperature gauge: Veratron NTC Thermistor 287.4-22.7 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power supply:
- Operating voltage: 10 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and mounting:
-
