SKU:
CN NA2C59514170
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Coolant Temperature Gauge provides accurate monitoring of coolant temperatures ranging from +40°C to +120°C or +105°F to +250°F. This 52mm gauge features amber LED backlighting and a white LED pointer. It operates with a voltage range of 10-32 V DC and includes protections against reverse polarity and short circuits. The gauge can be programmed using Veratron’s USB software kit for custom functionality.
- Description
- Ask a Question
-

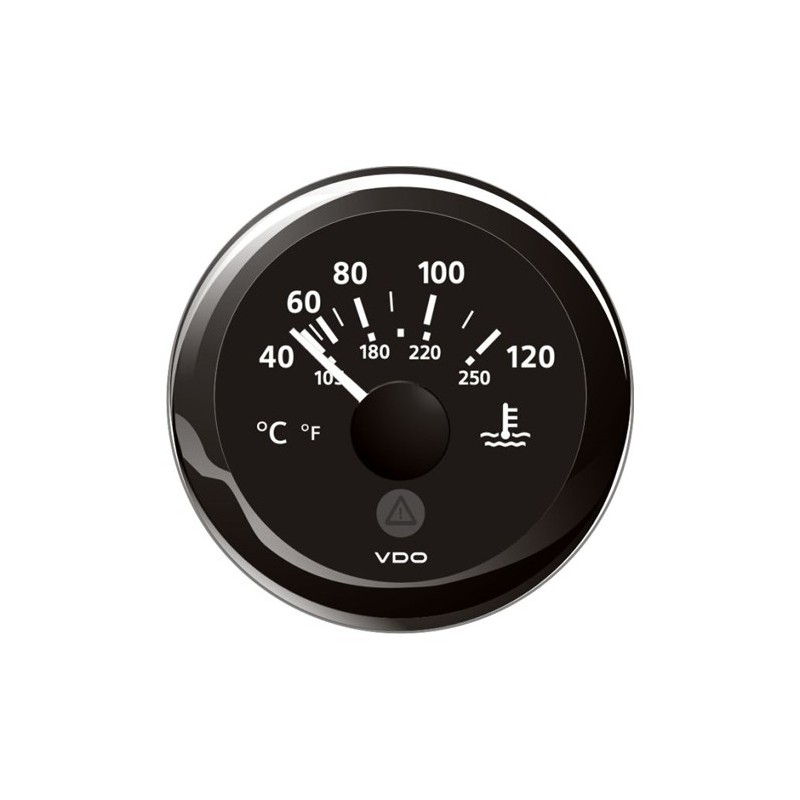

Veratron ViewLine Coolant Temperature 120°C Black 52mm
The Veratron ViewLine Coolant Temperature Gauge is a reliable instrument for monitoring the temperature of your vehicle's coolant. With clear, precise readings and a durable design, it is an essential component for maintaining engine health.
- Sizes and Mounting: Installation (Hole) diameter and Outside diameter: 52 mm (2 1/16 Inch) and 59 mm (2 1/3 Inch); Installation depth: 50 mm; Locking height with Spinlock nut: 0.5 mm - 20 mm; Locking height with bracket: 2 mm - 15 mm (Optional); Flushmount: Optional kit A2C59510864
- Functionality: Coolant temperature upper scale range: +40°C to +120°C; Coolant temperature under scale range: +105°F to +250°F; Sensor signal input: Veratron NTC Thermistor 287.4-22.7 Ohm; Accuracy: < 3.6 angular degrees; Connection: Hirschmann 8 pins MQS connector
- Power Supply: Operating voltage: 10 to 32 Volt DC; Current consumption: < 140 mA including warning LED; Reverse polarity protection: Yes - 5 Minutes; Short circuit protection: Yes - 1 Minute
- Dial & Pointer: Deflection angle: 90°; Dial colour: Black; Dial illumination: Amber LED backlight 605nm; Pointer: White LED backlight; Warning LED: Red (632nm); Programming: Veratron USB software kit
-
