The Veratron ViewLine Black Voltmeter 18-32V DLRB 52mm is designed for marine use, providing accurate voltage readings between 18V and 32V DC. It features a compact design with a black dial, amber LED backlighting, and a white LED pointer. The voltmeter also includes protection features like reverse polarity and short circuit protection to ensure safe operation.
- Description
- Ask a Question
-

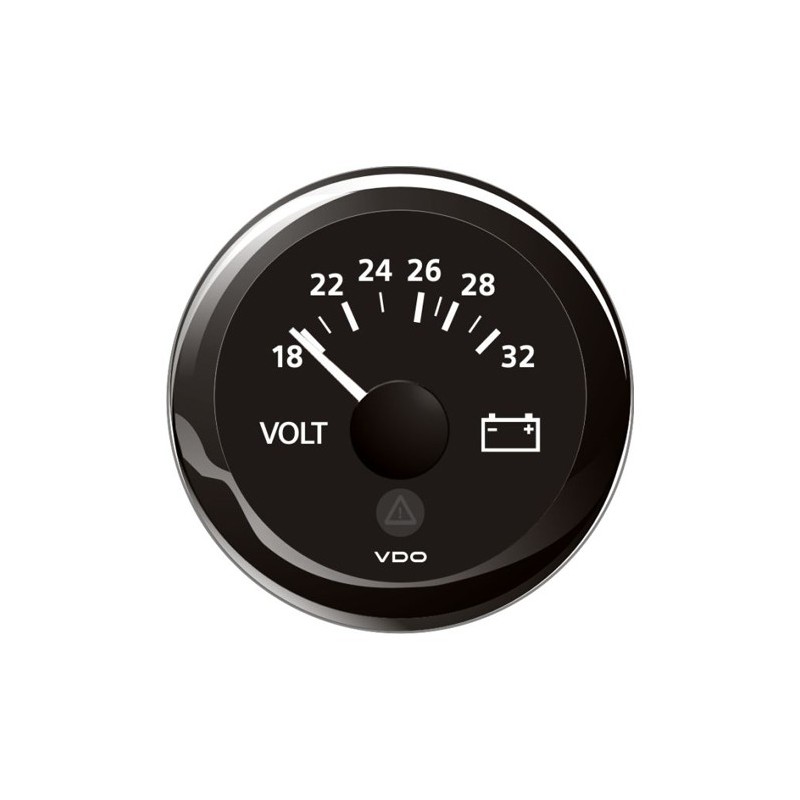

Veratron ViewLine Black Voltmeter 18-32V DLRB 52mm
Get accurate voltage readings with the Veratron ViewLine Black Voltmeter. A compact yet powerful tool designed for marine use, it ensures precise voltage measurement from 18V to 32V DC.
- Sizes and Mounting:
- Installation (Hole) diameter: 52 mm - 2 1/16 Inch
- Outside diameter: 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Voltmeter measurement range: 18 to 32V DC
- Signal input voltmeter: 0 to 32 V DC Battery power
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply:
- Operating voltage: 18 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: Black
- Dial Illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming:
- Veratron USB software kit
- Sizes and Mounting:
-
