SKU:
CN NA2C59514192
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Fresh Water Level Gauge is designed for freshwater applications, offering accurate water level readings with a sleek white dial and a red LED pointer. It supports a 52mm installation diameter and provides a 0 to full level range. The gauge utilizes a 3-180 Ohm lever arm sensor, ensuring precision in freshwater monitoring. Additionally, it comes with reverse polarity and short circuit protection, providing enhanced safety during operation.
- Description
- Ask a Question
-

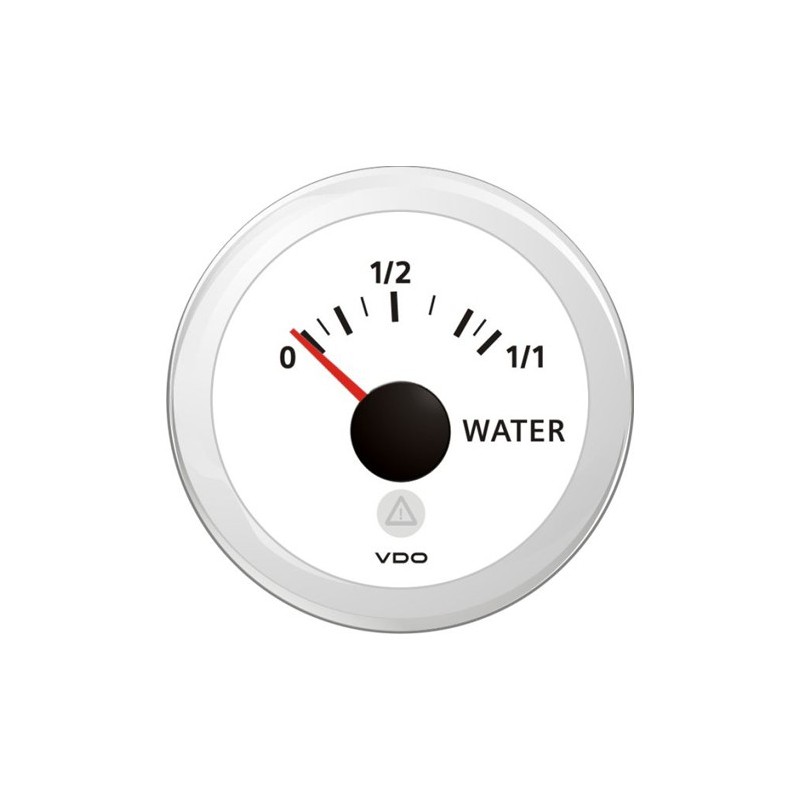

Veratron ViewLine - 52mm White Fresh Water Level 1/1 3-180 Ohm - 12-24V DLRW
The Veratron ViewLine Fresh Water Level Gauge is a versatile and accurate tool for monitoring water levels. With its clean white dial, red LED pointer, and amber backlighting, it’s ideal for freshwater applications, delivering clear and reliable readings.
- Sizes and Mounting: Installation (Hole) diameter: 52 mm (2 1/16 Inch), Outside diameter: 59 mm (2 1/3 Inch), Installation depth: 50 mm
- Locking height: With Spinlock nut: 0.5 mm - 20 mm, With bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Fresh water level measurement range: 0 - 1/2 - 1/1
- Sensor signal input: Veratron Lever arm sender 3 - 180 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power supply: Operating voltage: 8 - 32 V DC, Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer: Deflection angle: 90°, Dial colour: White, Dial illumination: Amber LED backlight (605nm), Pointer: Red LED backlight, Warning LED: Red (632nm)
- Programming: Veratron USB software kit
-
