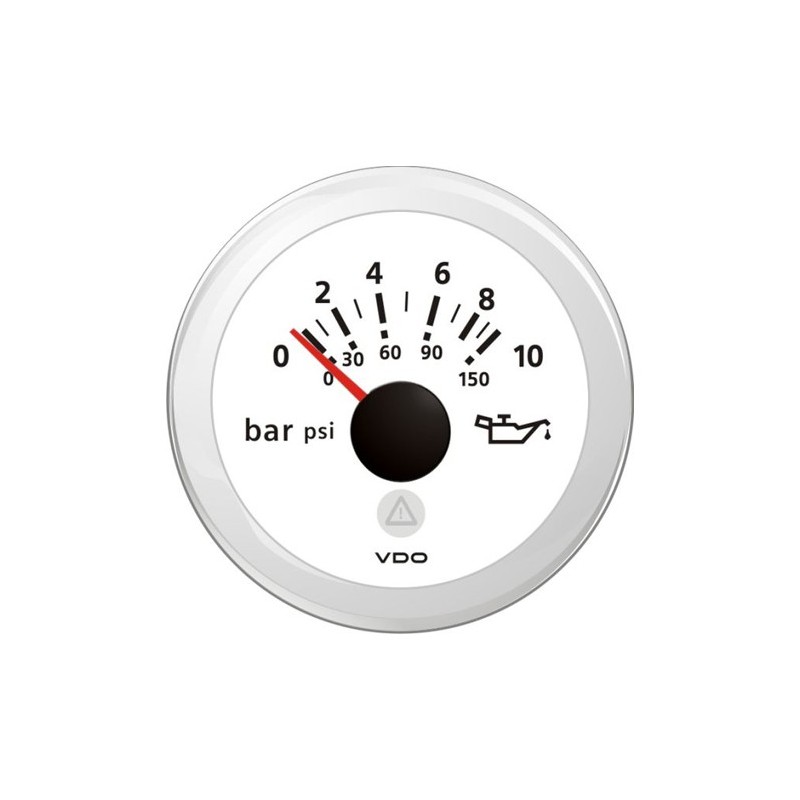

The Veratron ViewLine Engine Oil Pressure Gauge 10Bar-150PSI 52mm is a high-performance instrument designed for measuring oil pressure in automotive engines. With a 52mm installation diameter, it features a white dial illuminated by amber LED backlighting and a red LED pointer for easy readability. The gauge offers a pressure range from 0 to 10 Bar (0 to 150 PSI) and uses a Veratron Pressure sender for precise measurements. It also includes reverse polarity and short circuit protection for durability and safety.
- Description
- Ask a Question
-
Veratron ViewLine - 52mm White Engine Oil Pressure 10Bar-150PSI - 12-24V DLRW
This product is a high-quality engine oil pressure gauge designed to provide accurate readings for oil pressure in various automotive applications.
- Sizes and mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Engine oil pressure upper scale range: 0 to 10 Bar
- Engine oil pressure under scale range: 0 to 150 PSI
- Sensor signal input engine oil pressure: Veratron Pressure sender 10 to 184 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power supply:
- Operating voltage: 8 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Sizes and mounting:
-
